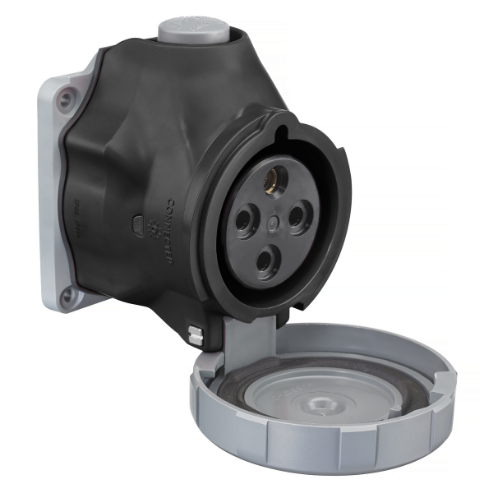

HUBBELL WIRING DEVICE-KELLEMS HBLS460R5W Watertight Pin and Sleeve Receptacle, 60A
Get it by Monday, Jun 16
€1,593.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pin and Sleeve Receptacle |
| Amps | 60A |
| Color | Black |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 60A |
| Face Diameter | 3.88" |
| Features | Approved As A Disconnecting Means For Motor Circuits And Branch Circuits, Mates With Existing Installed Base Of IEC 60309-2 Pin And Sleeve Devices, Unswitched Ground |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 40 hp |
| Housing Color | Black |
| Housing Material | Polybutylene Terephthalate |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | 4X |
| Number Of Gangs | 1 |
| Phase | Three |
| Power Indicating Light | Yes |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, FILE E146033, UL IEC 60309-1 IEC 60309-2, UL LISTED |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 16.76 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Hp | Item | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL420R12W | 20 | Orange | 20 A | - | IEC Pin and Sleeve Receptacle | 3 | 4 | 1 | €374.90 | |
 |
HBL420R9W | 20 | Blue | 20 A | 2 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €263.98 | |
|
HBL430R12W | 30 | Orange | 30 A | - | IEC Pin and Sleeve Receptacle | 3 | 4 | 1 | €335.10 | |
|
HBL460R9W | 60 | Blue | 60 A | 5 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €809.98 | |
 |
HBL460R7W | 60 | Red | 60 A | 10 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €548.49 | |
|
HBL4100R7W | 100 | Red | 100 A | 50 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €1,035.86 | |
|
HBL430R9W | 30 | Blue | 30 A | 7.5 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €335.10 |
