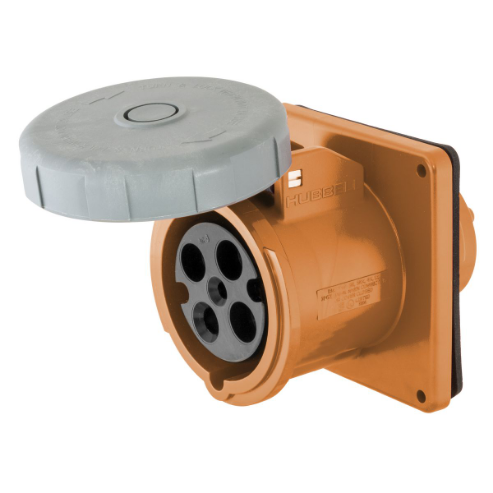

HUBBELL WIRING DEVICE-KELLEMS HBL430R12W Iec Pin And Sleeve Receptacle, Female, 30 A, 125 - 250 V, 3 Pole, Orange
Get it by Monday, Jun 16
€335.10 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 30A |
| Color | Orange |
| Exposure Conditions | Wateright |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 1 |
| Type | Female Receptacle |
| Voltage | 125/250V |
| Wattage | 7500 W |
| Wire Size | 12 AWG to 8 AWG |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 30/60A |
| Face Diameter | 3.6" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 3 hp |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Ip Rating | IP67 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 12 AWG |
| Nema Enclosure Rating | 4X |
| Number Of Gangs | 1 |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1 |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 600V AC 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 12.45 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Hp | Item | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HBL420R12W | 20 | Orange | 20 A | - | IEC Pin and Sleeve Receptacle | 3 | 4 | 1 | €374.90 | |
 |
HBL420R9W | 20 | Blue | 20 A | 2 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €263.98 | |
|
HBL460R9W | 60 | Blue | 60 A | 5 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €809.98 | |
 |
HBL460R7W | 60 | Red | 60 A | 10 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €548.49 | |
|
HBL4100R7W | 100 | Red | 100 A | 50 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €1,035.86 | |
|
HBL430R9W | 30 | Blue | 30 A | 7.5 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €335.10 | |
|
HBL430R7W | 30 | Red | 30 A | 15 | IEC Pin and Sleeve Receptacle | 3 | 4 | 3 | €335.10 |
