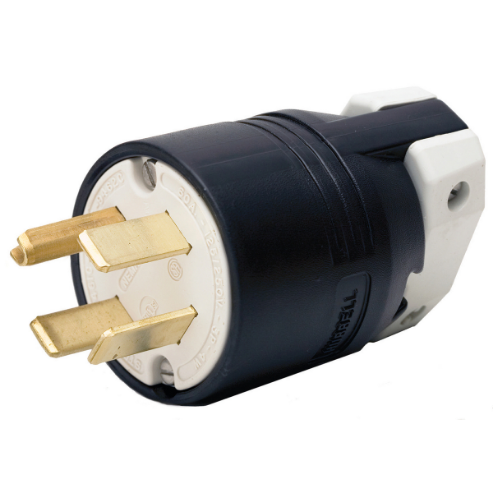

HUBBELL WIRING DEVICE-KELLEMS HBL9461C Straight Blade Male Plug, 3-P 4-W Grounding, 60A 125/250V, 14-60P, Black, 1 Pk
Get it by Tuesday, Jun 17
€126.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Plug |
| Amps | 60A |
| Antimicrobial | No |
| Color | Black |
| Cord Size | 0.625" to 1.31" |
| Grade | Grade Industrial |
| Height | 2 22/25" |
| Length | 4.13" |
| Material | Nylon |
| Max. Hp | 3 hp |
| Nema Rating | NEMA 14-60P |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Width | 2 22/25" |
| Wire Size | 12 AWG to 4 AWG |
| Wiring Type | Standard |
| Body Length | 4.13" |
| Connection Orientation | Straight |
| Current Rating | 60A |
| For Maximum Cable Diameter | 1.31" |
| For Minimum Cable Diameter | 0.625" |
| Grounding | Grounded |
| Horsepower Rating | 2 hp, 3 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Nema Plug Configuration | 14-60P |
| Number Of Blades | 4 |
| Outside Diameter | 2.88" |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant |
| Standards | CSA CERTIFIED, UL E1706 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 7.32 |
| HS code | 8536490080 |
| Country of Origin | US |
| Product | Model | Amps | Color | Conductor Range | Cord Size | Current Rating | Grade | Height | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5466C | 20 | Black, White | - | 0.230 to 0.720" | 20 A | Industrial | 1.53" | 2 | €36.69 | |
 |
HBL5666C | 15 | Black, White | - | 0.230 to 0.720" | 15 A | Industrial | 1.53" | 1.5 | €28.23 | |
 |
HBL5866VY | 15 | Yellow | - | 0.218 to 0.385" | 15 A | Commercial | 0.88" | 0.5 | €14.31 | |
 |
HBL5364VBK | 20 | Black | - | 0.220 to 0.660" | 20 A | Commercial | - | 1 | €31.99 | |
 |
HBL5464VY | 20 | Yellow | - | 0.220 to 0.660" | 20 A | Commercial | 1.13" | 2 | €34.68 | |
 |
HBL56CM66C | 15 | Yellow | - | 0.230 to 0.720" | 15 A | Corrosion Resistant | 1.53" | 1.5 | €49.96 | |
 |
HBL8364V | 20 | White | - | 0.300 to 0.660" | 20 A | Hospital | 1.13" | 1 | €35.81 |
