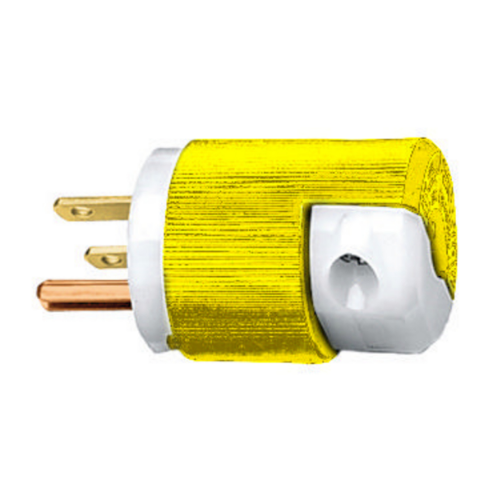

HUBBELL WIRING DEVICE-KELLEMS HBL56CM66C Straight Blade Male Plug, 2-P 3- W Grounding, 15A 250V, 6-15P, Yellow, 1 Pk
Get it by Tuesday, Jun 17
€59.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Plug |
| Amps | 15A |
| Antimicrobial | No |
| Color | Yellow |
| Cord Size | 0.23" to 0.72" |
| Finish | Corrosion Resistant |
| Height | 1.53" |
| Hp | 1 1/2 hp |
| Length | 1.97" |
| Material | Nylon |
| Max. Hp | 1 1/2 hp |
| Nema Rating | NEMA 6-15P |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Voltage | 250V |
| Wattage | 3750 W |
| Width | 1.53" |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Type | Standard |
| Body Length | 1.97" |
| Connection Orientation | Straight |
| Current Rating | 15A |
| For Maximum Cable Diameter | 0.72" |
| For Minimum Cable Diameter | 0.23" |
| Grounding | Grounded |
| Horsepower Rating | 1 1/2 hp |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | 6-15P |
| Number Of Blades | 3 |
| Outside Diameter | 1.53" |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42 FILE 280, NEMA WD-6, UL 498 FILE E1706 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.89 |
| Ship length (cm) | 5 |
| Ship width (cm) | 3.89 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Conductor Range | Cord Size | Current Rating | Grade | Height | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5466C | 20 | Black, White | - | 0.230 to 0.720" | 20 A | Industrial | 1.53" | 2 | €36.69 | |
 |
HBL5666C | 15 | Black, White | - | 0.230 to 0.720" | 15 A | Industrial | 1.53" | 1.5 | €28.23 | |
 |
HBL5866VY | 15 | Yellow | - | 0.218 to 0.385" | 15 A | Commercial | 0.88" | 0.5 | €14.31 | |
 |
HBL5364VBK | 20 | Black | - | 0.220 to 0.660" | 20 A | Commercial | - | 1 | €31.99 | |
 |
HBL5464VY | 20 | Yellow | - | 0.220 to 0.660" | 20 A | Commercial | 1.13" | 2 | €34.68 | |
 |
HBL8364V | 20 | White | - | 0.300 to 0.660" | 20 A | Hospital | 1.13" | 1 | €35.81 | |
 |
HBL8464V | 20 | White | #18AWG to #12AWG | 0.300 to 0.660" | 20 A | Hospital | 1.13" | 2 | €41.53 |
