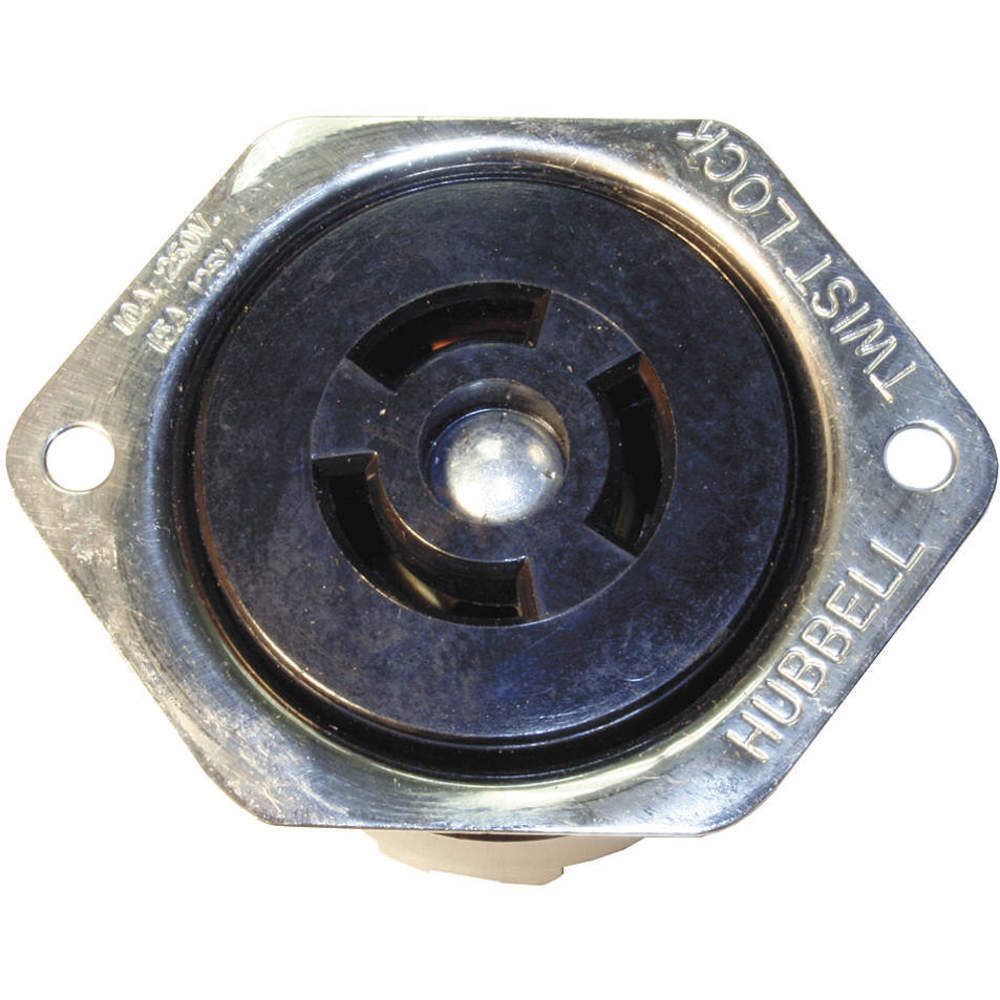

| Item | Flanged Receptacle |
| Amps | 10A @ 125V/15A @ 250V |
| Color | Brown |
| Connectivity | Screw Terminals |
| Grade | Grade Industrial |
| Height | 1 8/25" |
| Length | 2.31" |
| Material | Stainless Steel |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non-NEMA |
| Nema Rating | NEMA 12, NEMA 4X |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Non Shrouded |
| Wattage | 3750 W |
| Width | 1 3/4" |
| Wire Size | 18 AWG to 10 AWG |
| Wire Type | Standard |
| Afci | No |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 10/15A |
| Flange Material | Stainless Steel |
| Flange Shape | Oval |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Non Grounded |
| Housing Color | Brown, Silver |
| Housing Material | Stainless Steel |
| Includes | Mounting Screws |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Gangs | 1 |
| Polarized | Yes |
| Resistance Properties | Heat Resistant |
| Shrouded | No |
| Standards | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, UL 498 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.35 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 4.45 |
| HS code | 8538908080 |
| Country of Origin | US |
