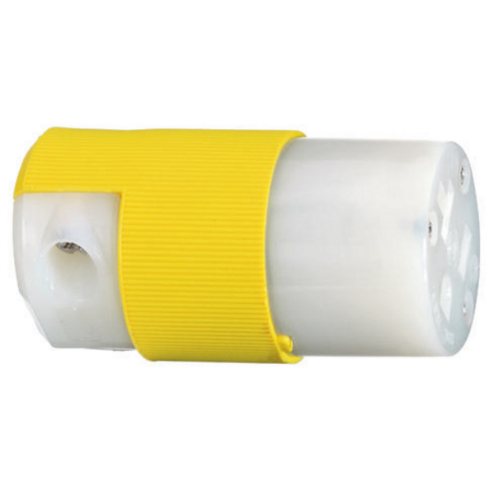

HUBBELL WIRING DEVICE-KELLEMS HBL53CM69C Connector Body 20 A
Get it by Monday, Jun 16
€93.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Straight Blade Device |
| Antimicrobial | No |
| Color | Yellow |
| Cord Size | 0.23" to 0.72" |
| Grade | Grade Industrial |
| Material | Nylon |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Connector Body |
| Voltage | 125V AC |
| Wire Type | Standard |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 20A |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Receptacle Configuration | NEMA 5-20R |
| Overall Length | 2.78" |
| Polarized | Yes |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant |
| Standards | CSA CERTIFIED, NEMA WD-6, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 7.06 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 3.86 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Nema Configuration | Type | Voltage | Price | |
|---|---|---|---|---|---|---|
 |
HBL53CM61 | 5-20R | Single Receptacle | 125 | €57.69 | |
 |
HBL53CM66C | 5-20P | Plug | 125 VAC | €48.71 |
