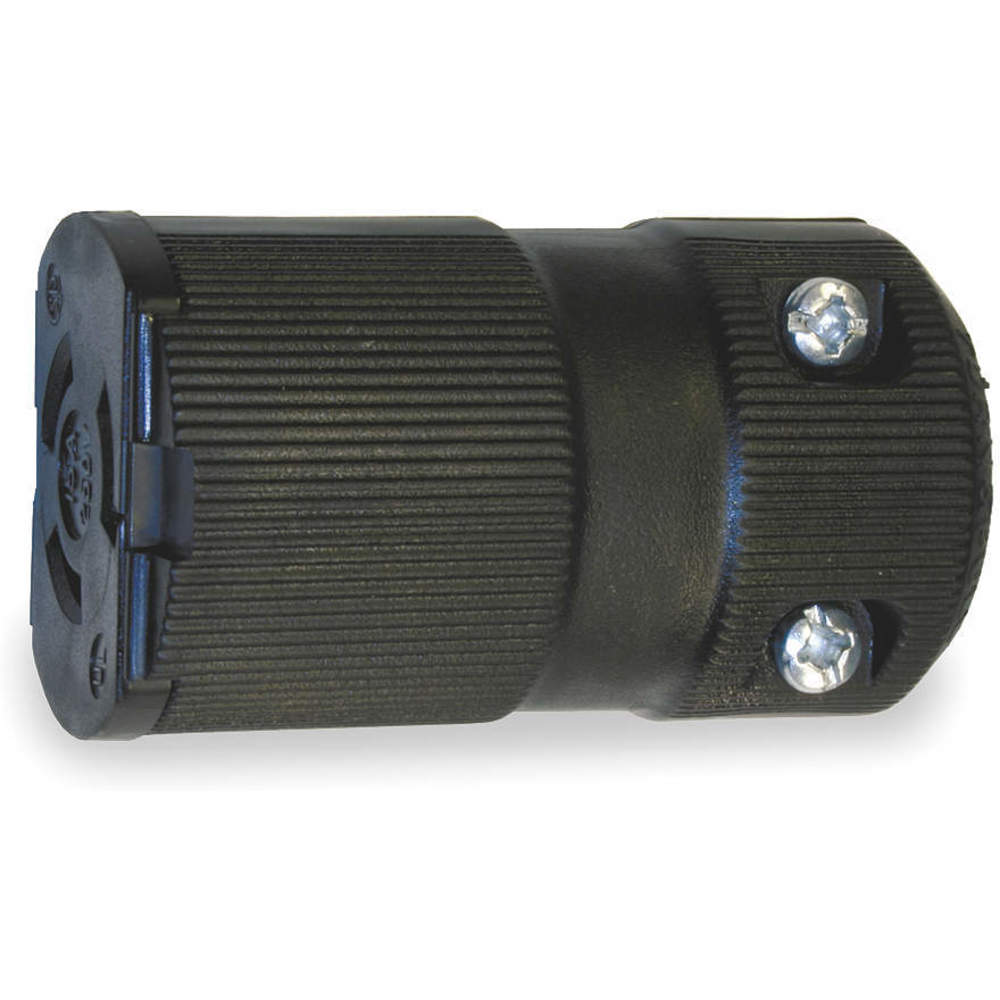

HUBBELL WIRING DEVICE-KELLEMS HBL4579VBK Female Connector Body, 15A, 250V, 2-Pole, 3-Wire Grounding
Get it by Wednesday, Jun 18
€38.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Locking Connector |
| Amps | 15A |
| Body Material | Nylon |
| Cable Range | 0.22" to 0.66" |
| Color | Black |
| Connectivity | Pressure Terminal Screws |
| Cord Size | 0.22" to 0.66" |
| Height | 2.59" |
| Insulation | Insulated Body |
| Length | 1 1/2" |
| Material | Nylon |
| Mounting | Cord Mounted |
| Nema Rating | NEMA L6-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Width | 1 1/2" |
| Wire Size | 18 AWG to 12 AWG |
| Wiring Type | Hinged |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 15A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.66" |
| For Minimum Cable Diameter | 0.22" |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Nylon |
| Insulation Material | Thermoplastic |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Receptacle Configuration | L6-15R |
| Outside Diameter | 1.5" |
| Overall Length | 1.5" |
| Phase | Single |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Standards | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, UL 498 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Hinged |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 6.58 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.81 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Cable Range | Color | Connectivity | Cord Size | Current Rating | Height | Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL7464V | 15 | 0.220-0.385" | Black | Pressure Terminal Screws | 0.220" to 0.385" | 15 A | 1.77" | 1.06" | €31.93 | |
 |
HBL4779VY | 15 | 0.220-0.660" | Yellow | Pressure Terminal Screws | 0.220" to 0.660" | 15 A | 2.78" | 1.5" | €34.12 | |
 |
HBL2313VBK | 20 | 0.325-0.720" | Black | Pressure Terminal Screws | 0.326" to 0.720" | 20 A | 3.5" | 1.81" | €35.69 | |
 |
HBL2323VBK | 20 | 0.325-0.720" | Black | Pressure Terminal Screws | 0.326" to 0.720" | 20 A | 3.5" | 1.81" | €34.12 | |
 |
HBL2623VBK | 30 | - | Black | Pressure Terminal Screws | 0.590" to 0.930" | 30 A | 1.78" | 3.5" | €70.60 | |
 |
HBL4729VBK | 15 | 0.220-0.660" | Black | Pressure Terminal Screws | 0.220" to 0.660" | 15 A | 2.59" | 1.5" | €30.86 | |
 |
HBL4779VBK | 15 | 0.220-0.660" | Black | Pressure Terminal Screws | 0.220" to 0.660" | 15 A | 2.59" | 1.5" | €34.12 |
