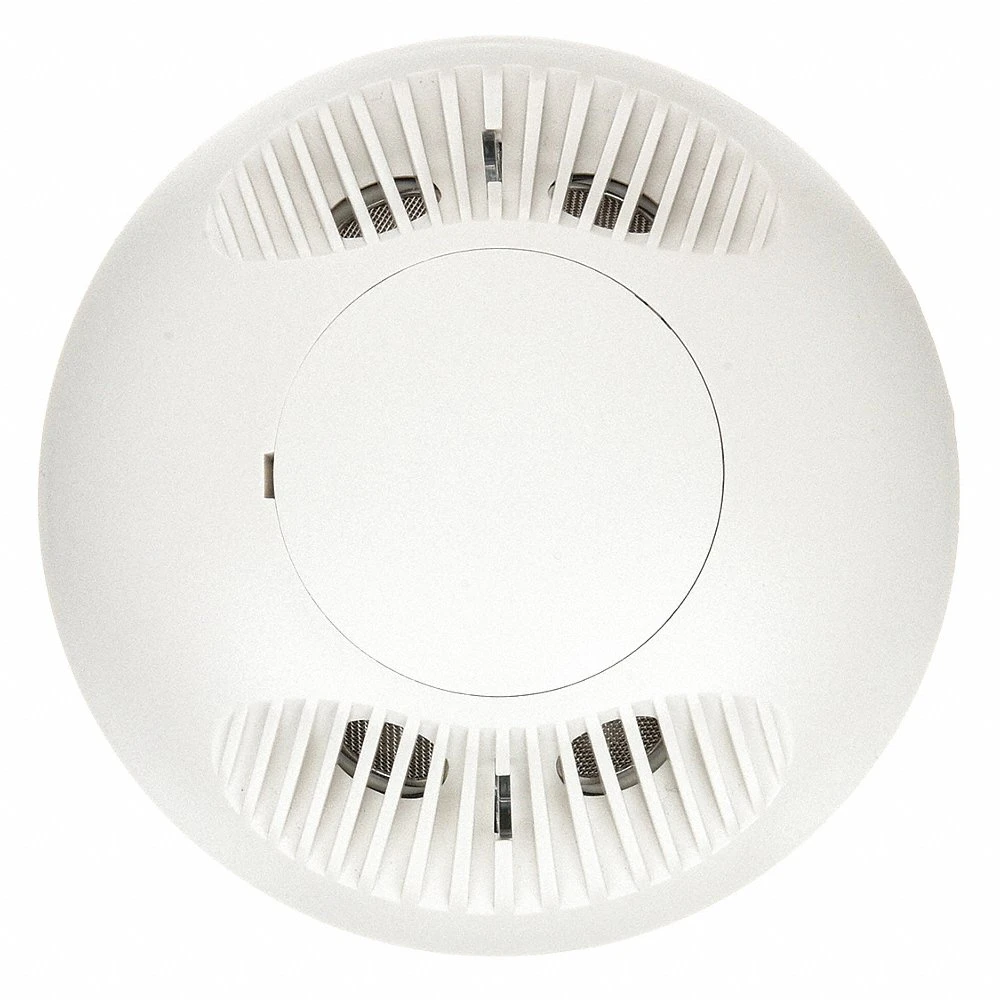

HUBBELL WIRING DEVICE-KELLEMS ATU2000C Occupancy Sensor, 2000 Square Feet Coverage
Get it by Tuesday, Jun 17
€500.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Occupancy Sensor |
| Color | White |
| Coverage | 2000 sq. ft. |
| Diameter | 4 1/2" |
| Height | 1 1/2" |
| Indicator | Ultrasonic Green LED |
| Installation Type | Ceiling |
| Material | ABS |
| Minute | 8 min. to 40 min. |
| Mounting Type | Ceiling , Screw Mounting |
| Operating Temp. | +32°F to +104°F |
| Operating Temp. Range | +32°F to +113°F |
| Sensor Type | Ultrasonic |
| Time Delay | Adaptive/Manual |
| Timer | 8 min. to 40 min. |
| Timer Range | 8 min. to 40 min. |
| Viewing Angle | 360° |
| Communication Method | Hard Wired |
| Compatible With Brand | Hubbell Wiring |
| Compatible With Manufacturer Model Number | CU300A, CU300HD, CU300M |
| Compatible With Series | Ultrasonic |
| Coverage Angle | 360° |
| Includes | Mounting Hardware |
| Installation Location | Ceiling |
| Lighting Technology | LED |
| Load Rating @ 120v Ac | Dependent on Control Unit Rating |
| Load Rating @ 277v Ac | Dependent on Control Unit Rating |
| Manufacturer Warranty | Limited Lifetime |
| Maximum Coverage Area | 2000 sq. ft. |
| Maximum Mounting Height | 12 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 40 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 8 min. |
| Operating Voltage | 24V DC |
| Overall Diameter | 4.5" |
| Overall Height | 1 1/2" |
| Sensing Technology | Ultrasonic |
| Sensor Operation | Occupancy |
| Series | Ultrasonic |
| Standards | ASHRAE 90.1, CULUS LISTED, UL244A |
| Time Delay Adjustment Method | Adaptive |
| Voltage Type | Low Voltage |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 14.48 |
| HS code | 8536509065 |
| Country of Origin | CN |
| Product | Model | Color | Coverage | Diameter | Height | Indicator | Input Voltage | Item | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATP1500C | White | 1500 sq. ft. | 4.5" | 1.5" | PIR Red LED | 24 VDC | Occupancy Sensor | Ceiling Mount | €260.40 | |
|
ATP1500CRP | White | 1500 sq. ft. | 4.5" | 1.5" | PIR Red LED | 24 VDC | Occupancy Sensor | Ceiling Mount | €363.68 | |
 |
ATP1600WRP | White | 1600 sq. ft. | 1.5" | 6" | PIR Red LED | Low Voltage | Occupancy Sensor | Wall Mount | €442.25 | |
 |
ATU1000CRP | White | 1000 sq. ft. | 4.5" | 1.5" | Ultrasonic Green LED | 24 VDC | Occupancy Sensor | Ceiling Mount | €481.91 | |
 |
ATU2000CRP | White | 2000 sq. ft. | 4.5" | 1.5" | Ultrasonic Green LED | 24 VDC | Occupancy Sensor | Ceiling Mount | €534.29 | |
 |
WS2000W | White | 1200 sq. ft. | - | 1.62" | PIR Red LED | - | Sensor Switch | - | €117.39 | |
 |
WS2000NGY | Gray | 1200 sq. ft. | - | 1.62" | PIR Red LED | - | Sensor Switch | - | €166.57 |
