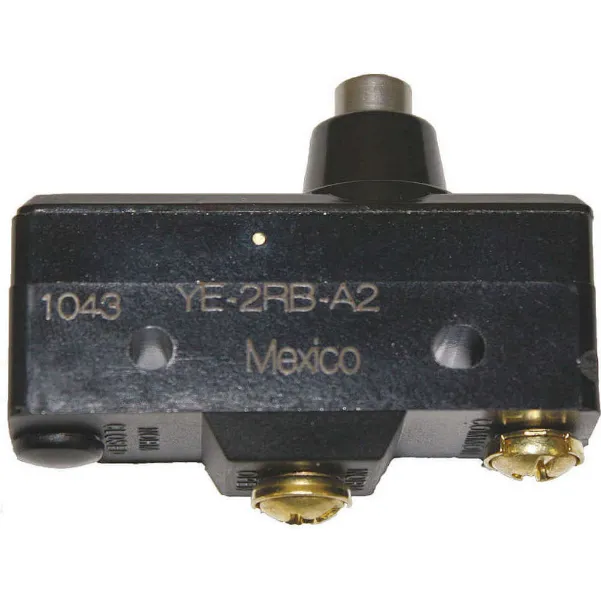

| Item | Snap Switch |
| Actuation Type | Pin Plunger |
| Actuator Length | Not Applicable |
| Actuator Type | Pin Plunger |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Amps Rating | 25A |
| Body Material | General Purpose Phenolic |
| Depth | 0.7" |
| Depth - Snap Action Switch | 0.7" |
| Differential Travel | 0.002" to 0.0075" |
| Electrical Connection - Snap Action Switch | Screw |
| Height | 1" |
| Height - Snap Action Switch | 1" |
| Length | 2" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.05" |
| Operating Force | 14 oz. to 22 oz. |
| Operating Temp. | -67°F to +185°F |
| Over Travel | 0.094" |
| Release Force | 10 oz. |
| Terminal Type | Screw |
| Watertight | No |
| Ac Contact Rating | 25A @ 250V |
| Actuator Style | Plunger |
| Body Depth | 0.7" |
| Body Height | 1" |
| Body Width | 2" |
| Center Mounting Hole Distance | 1" |
| Contact Form | 1NO |
| Differential Travel - Maximum | 0.002" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Operating Force - Maximum | 22 ozf |
| Operating Force - Minimum | 14 ozf |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -67°F |
| Overall Depth | 0.7" |
| Overall Height | 1" |
| Overall Width | 2" |
| Pre-travel | 0.05" |
| Series | YE Series |
| Standards | CSA, UL LISTED |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 11.94 |
| HS code | 8536509055 |
| Country of Origin | MX |
