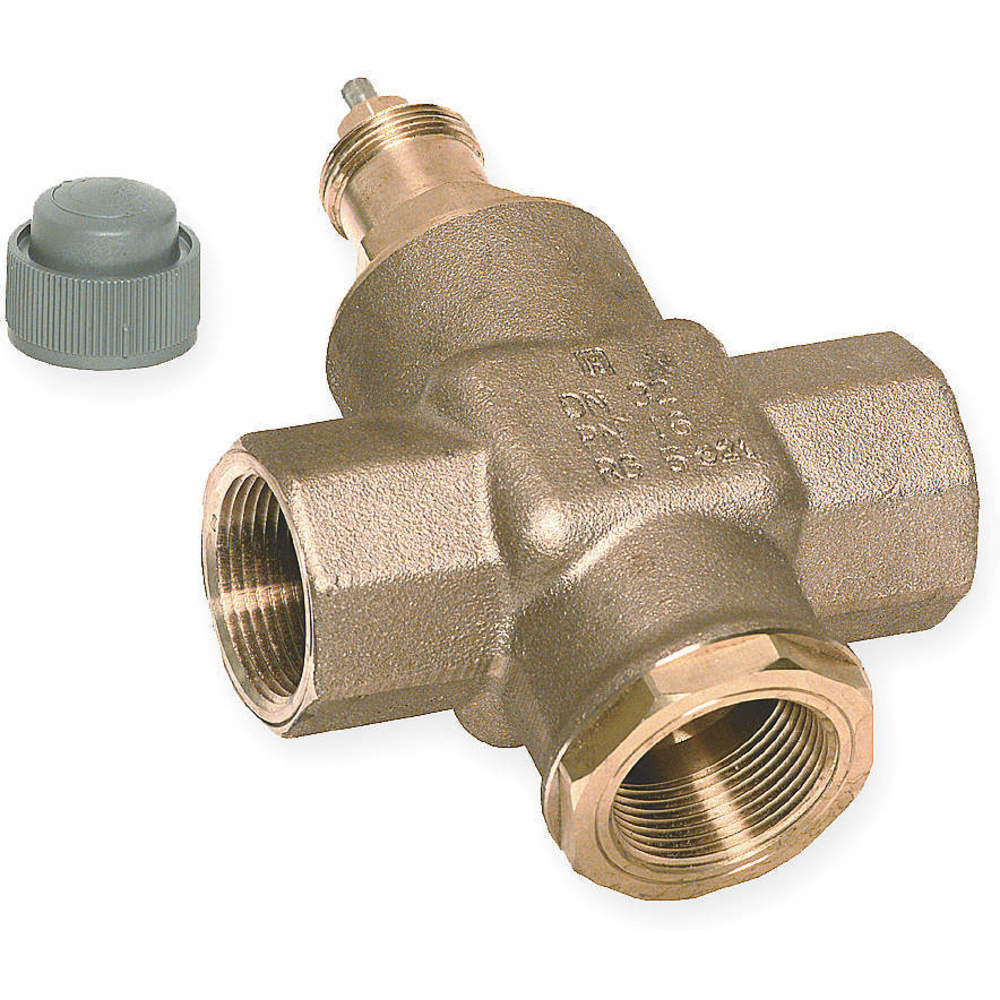

| Item | Threaded Globe Valve |
| Coefficient Of Volume | 4.9 |
| Connection Size | 3/4" |
| Connection Type | NPT |
| Depth | 3 1/2" |
| Height | 3.469" |
| Number Of Ways | 3 |
| Ansi Rating | ANSI Leakage Class IV |
| Body Material | Brass |
| Body Pattern | Three-Way |
| Cartridge Material | Brass |
| Compatible With Series | Series V58 |
| Configuration | Tee |
| Cv Flow Rate | 4.9 |
| Flow Characteristic | Equal Percentage |
| Fluid Service | Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 230°F |
| Fluid Temperature - Minimum | 36°F |
| Includes Actuator | Actuator Not Included |
| Leakage Rate | 0.01% |
| Overall Depth | 3 1/2" |
| Overall Height | 3 15/32" |
| Overall Length | 3 7/32" |
| Port Connection Gender | Female |
| Port Connection Size | 3/4" |
| Port Connection Type | NPT |
| Rangeability | 50:1 |
| Seat Material | Brass |
| Specific Valve Action | Stem Up to Close |
| Stem Material | Stainless Steel |
| Stem Travel | 1/4" |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 0.46 |
| Country of Origin | Germany |
