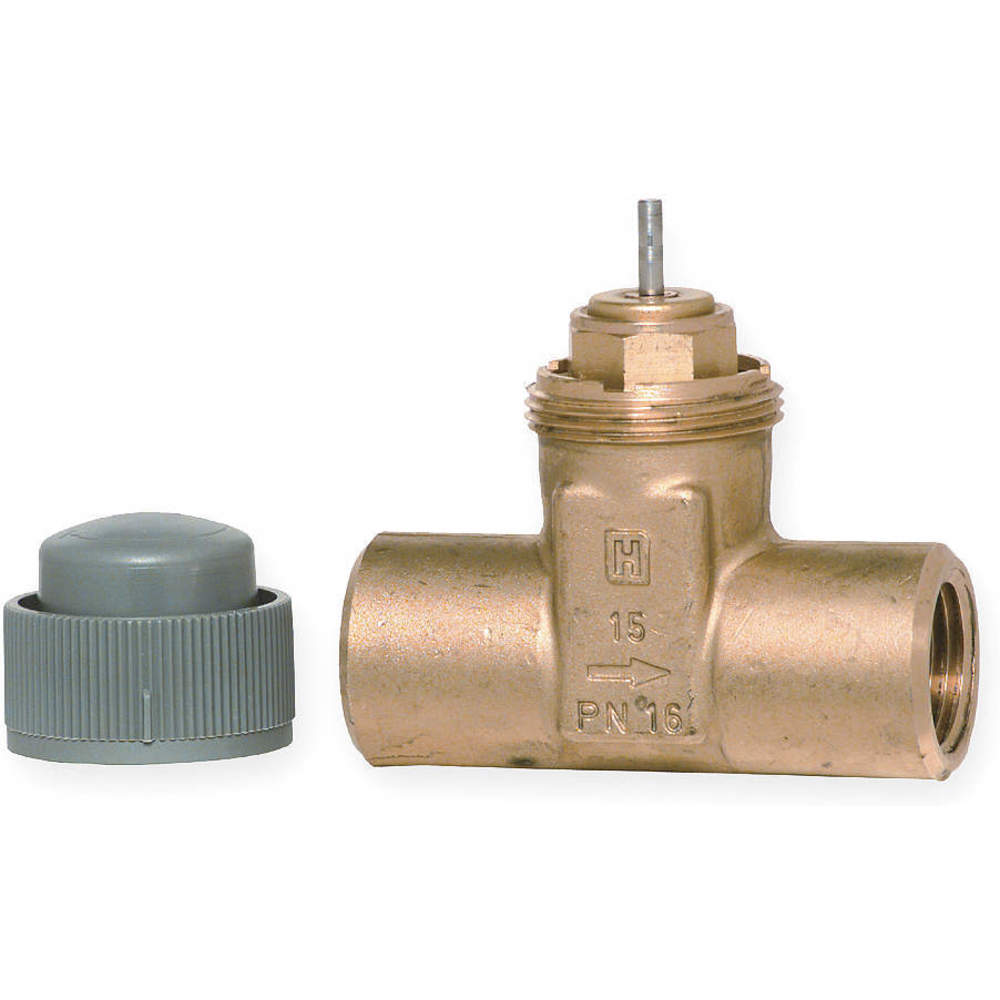

HONEYWELL V5862A2054 Threaded Globe Valve, 2-Way, Cartridge, 1/2 Inch FNPT
€90.25 /unit
Request a Quote
Payment
Payment
| Item | Threaded Globe Valve |
| Actuator Control Pressure | Not Applicable |
| Actuator Control Pressure - Maximum | Not Applicable |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Not Applicable |
| Body Material | Brass |
| Cartridge Material | Brass |
| Coefficient Of Volume | 1.9 |
| Configuration | Straight-Thru |
| Flow Characteristic | Equal Percentage |
| Includes | Installation Manual |
| Includes Actuator | Actuator Not Included |
| Number Of Ways | 2 |
| Port Connection Gender | Female |
| Rangeability | 1001 |
| Seat Material | Brass |
| Specific Valve Action | Stem Down To Close |
| Specifications | Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited. |
| Stem Material | Stainless Steel |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Two-Way |
| Compatible With Series | Series V58 |
| Cv Flow Rate | 1.9 |
| Fluid Service | Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 230°F |
| Fluid Temperature - Minimum | 36°F |
| Leakage Rate | 0.01% |
| Overall Depth | 1 3/16" |
| Overall Height | 3" |
| Overall Length | 2 11/32" |
| Port Connection Size | 1/2" |
| Port Connection Type | NPT |
| Stem Travel | 1/4" |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 0.27 |
| Model | Agency Compliance | Coefficient Of Volume | Connection Size | Depth | Height | Type | Price | |
|---|---|---|---|---|---|---|---|---|
| V5011N1008 | - | - | - | - | - | - | €286.26 | |
| V5011N1016 | - | - | - | - | - | - | €470.67 | |
| V5011N1024 | - | - | - | - | - | - | €340.93 | |
| V5011N1032 | CRN | 2.9 | (F)NPT 1/2 | 1-9/16 | 6.625 | 2-Way, Direct Acting | €262.86 | RFQ
|
| V5011N1040 | CRN | 4.7 | (F)NPT 1/2 | 1-9/16 | 6.625 | 2-Way, Direct Acting | €279.81 | RFQ
|
| V5011N1057 | - | - | - | - | - | - | €297.37 | |
| V5011N1065 | CRN | 11.7 | (F)NPT 1 | 1-9/16 | 6.625 | 2-Way, Direct Acting | €389.04 | RFQ
|
