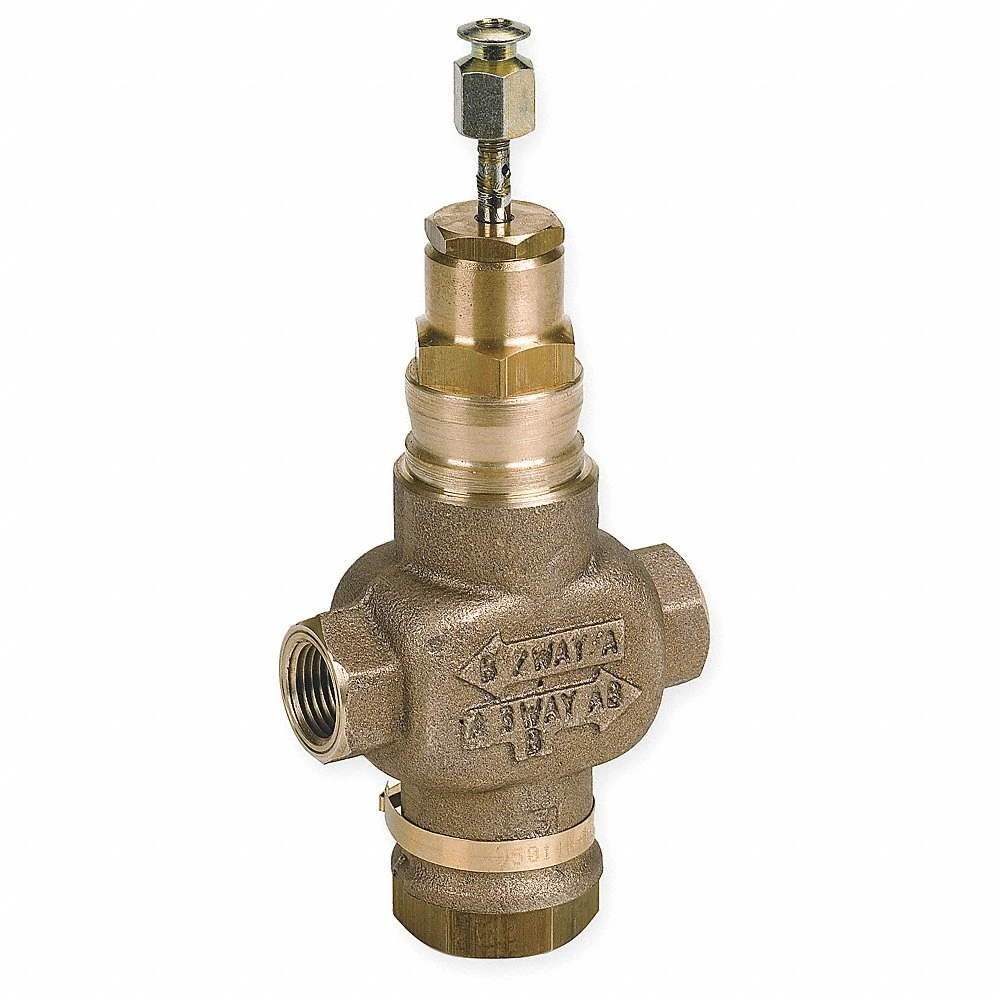

HONEYWELL V5011N1040 Threaded Globe Valve, 2-Way, Direct Acting, 1/2 Inch FNPT
€246.89 /unit
Request a Quote
Payment
Payment
| Item | Threaded Globe Valve |
| Coefficient Of Volume | 4.7 |
| Description/special Features | Valve Designs Provide Equal Percentage Characteristics Of Flow For Close Control Of Water, And Linear Characteristic Of Flow For Close Control Of Steam. |
| Number Of Ways | 2 |
| Ansi Rating | ANSI Class 150 |
| Body Material | Brass |
| Body Pattern | Two-Way |
| Compatible With Series | Series V5011N |
| Configuration | Straight-Thru |
| Cv Flow Rate | 4.7 |
| Flow Characteristic | Equal Percentage |
| Fluid Service | Steam, Water |
| Fluid Temperature - Maximum | 337°F |
| Fluid Temperature - Minimum | 36°F |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.05% |
| Overall Depth | 1 9/16" |
| Overall Height | 6 5/8" |
| Overall Length | 3 1/4" |
| Packing Material | PTFE |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Port Connection Type | NPT |
| Rangeability | 50:1 |
| Seat Material | Stainless Steel |
| Specific Valve Action | Stem Down to Close |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 1.26 |
| Model | Agency Compliance | Coefficient Of Volume | Connection Size | Depth | Height | Type | Price | |
|---|---|---|---|---|---|---|---|---|
| V5011N1008 | - | - | - | - | - | - | €286.26 | |
| V5011N1016 | - | - | - | - | - | - | €470.67 | |
| V5011N1024 | - | - | - | - | - | - | €340.93 | |
| V5011N1032 | CRN | 2.9 | (F)NPT 1/2 | 1-9/16 | 6.625 | 2-Way, Direct Acting | €262.86 | RFQ
|
| V5011N1057 | - | - | - | - | - | - | €297.37 | |
| V5011N1065 | CRN | 11.7 | (F)NPT 1 | 1-9/16 | 6.625 | 2-Way, Direct Acting | €389.04 | RFQ
|
| V5011N1073 | - | - | - | - | - | - | €482.41 |
