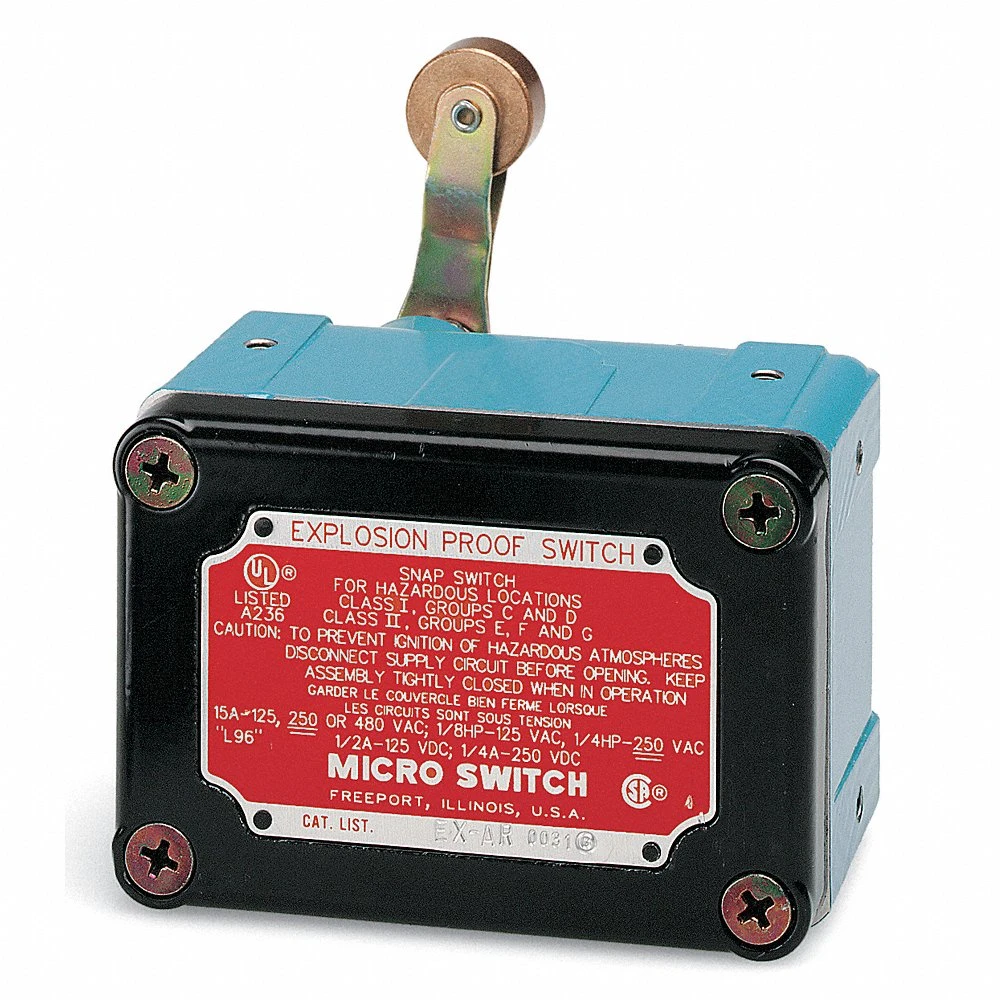

| Item | Explosion Proof Limit Switch |
| Actuator Length | 1 1/2" |
| Actuator Location | Top |
| Actuator Style | Rotary Lever Arm |
| Arm Material | Steel |
| Body Material | Aluminum |
| Certification | ATEX, IEC EX, DIV. 1, & 2, Class I, Groups C, & D; DIV. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEX D IIB + H2 T6 |
| Depth | 2.02" |
| Differential Travel Length | 0.007" |
| Electrical Connection | Screw Terminals |
| Height | 2 14/25" |
| Ip Rating | No IP Rating |
| Movement | CW |
| Operating Force | 0.5 lbs. to 1.25 lbs. |
| Operating Temp. Range | -40°F to +160°F |
| Over Travel Length | 90° |
| Pre-travel Length | 0.219" |
| Roller Dia. | 3/4" |
| Roller Material | Bronze |
| Roller Width | 0.31" |
| Width | 2.78" |
| Ac Contact Rating | 15A @ 600V |
| Actuator Type | Roller Lever |
| Body Configuration | Non Plug In |
| Body Depth | 2.02" |
| Body Height | 2.56" |
| Body Width | 2.78" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.25 A @ 250 V |
| Differential Travel | 0.01" |
| Directional Movement | CW |
| Environments & Applications | Hazardous Location Rated |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Mounting Hole Horizontal Center To Center Distance | 52 mm |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 1, NEMA 7, NEMA 9 |
| Number Of Mounting Holes | 2 |
| Operating Force - Maximum | 20 ozf |
| Operating Force - Minimum | 8 ozf |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -40°F |
| Overtravel | 90° |
| Pretravel | 8° |
| Roller Diameter | 3/4" |
| Series | EX Series |
| Standards | ATEX, CE, CSA, IEC EX. INMETRO, UL LISTED |
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 14.99 |
| Ship width (cm) | 7.37 |
| HS code | 8536509055 |
| Country of Origin | US |
| Product | Model | Actuator Length | Actuator Style | Amps | Arm Material | Movement | Operating Force | Operating Temp. Range | Roller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EXA-AR | 1.5" | Rotary Lever Arm | 20 Ind/0.5 Res/0.25 Res | Steel | CW | 0.75 lb. to 2 lb. | -40 Degrees to 160 Degrees F | Bronze | €1,113.41 | |
|
EXA-AR62 | 1.5" | Rotary Lever Arm | 20 Ind/0.5 Res/0.25 Res | Steel | CW | 0.75 lb. to 2 lb. | -40 Degrees to 160 Degrees F | Bronze | €1,515.10 | |
|
EX-AR141 | 1.5" | Rotary Lever Arm | 15 Ind./0.5 Res./0.25 Res. | Steel | CW | 0.5 lb. to 1.25 lb. | -40 Degrees to 160 Degrees F | Bronze | €882.25 | |
|
EX-AR16 | 1.5" | Rotary Lever Arm | 15 Ind./0.5 Res./0.25 Res. | Steel | CW/CCW, No Return Spring | 2 oz. | -40 Degrees to 160 Degrees F | Bronze | €1,331.13 | |
 |
EX-AR1613 | 5.3" | Rotary Lever Arm | 15 Ind./0.5 Res./0.25 Res. | Aluminum | CW | 2 oz. | -40 Degrees to 160 Degrees F | - | €1,260.56 | |
|
EX-AR182 | 1.5" | Rotary Lever Arm | 15 Ind./0.5 Res./0.25 Res. | Steel | CW | 0.5 lb. to 1.25 lb. | -40 Degrees to 160 Degrees F | Nylon | €1,796.72 | |
 |
EX-AR20 | - | Rotary Head, No Lever | 15 Ind./0.5 Res./0.25 Res. | - | CW | 31.25 in.-oz. | -40 Degrees to 160 Degrees F | - | €1,234.04 |
