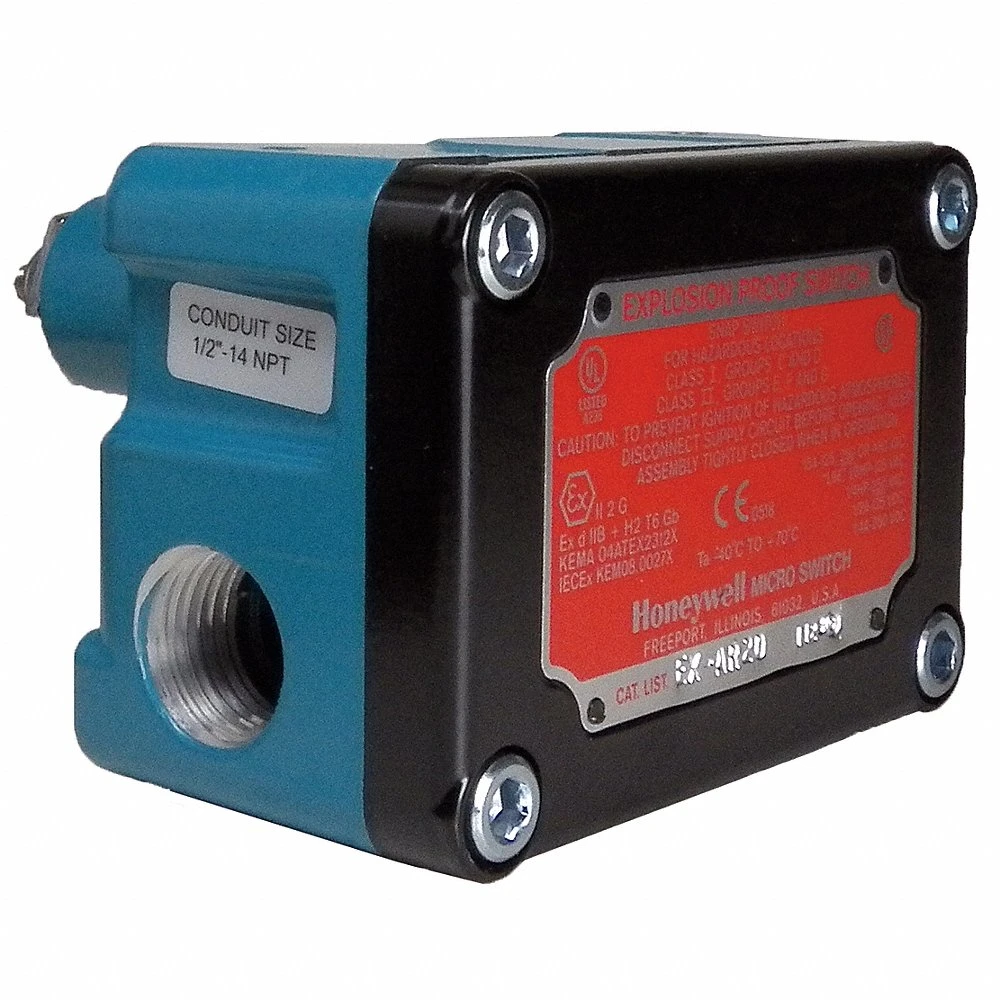

| Item | Explosion Proof Limit Switch |
| Actuator Location | Top |
| Actuator Style | No Lever, Rotary Head |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Basic Actuator Style | Rotary |
| Basic Actuator Style (limit Switch) | Rotary |
| Body Height - Limit Switch | 2 14/25" |
| Body Material | Aluminum |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 2.78" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Certification | ATEX, IEC EX, DIV. 1, & 2, Class I, Groups C, & D; DIV. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEX D IIB + H2 T6 |
| Depth | 2.02" |
| Differential Travel Length | 0.007" |
| Electrical Connection | Screw Terminals |
| Height | 2 14/25" |
| Ip Rating | No IP Rating |
| Limit Switch Style | Explosion Proof Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Spacing - Limit Switch | 2.06" |
| Movement | CW |
| Operating Force | 31.25 oz.-in. |
| Operating Temp. Range | -40°F to +160°F |
| Over Travel Length | 90° |
| Pre-travel Length | 0.219" |
| Stem Thread - Limit Switch | No Stem |
| Width | 2.78" |
| Ac Contact Rating | 15A @ 600V |
| Body Configuration | Non Plug In |
| Body Depth | 2.02" |
| Body Height | 2.56" |
| Compatible Actuator Type | Roller Lever |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.25 A @ 250 V |
| Differential Travel | 0.01" |
| Directional Movement | CW |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Includes Actuator | Actuator Not Included |
| Mounting Hole Horizontal Center To Center Distance | 52 mm |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 1, NEMA 7, NEMA 9 |
| Number Of Mounting Holes | 2 |
| Operating Force - Maximum - New | 31.25 ozf |
| Operating Force - Minimum | 12.5 ozf |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -40°F |
| Overtravel | 90° |
| Pretravel | 8° |
| Series | EX Series |
| Standards | ATEX, CE, CSA, IEC EX. INMETRO, UL LISTED |
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 10.16 |
| HS code | 8536509055 |
| Country of Origin | US |
