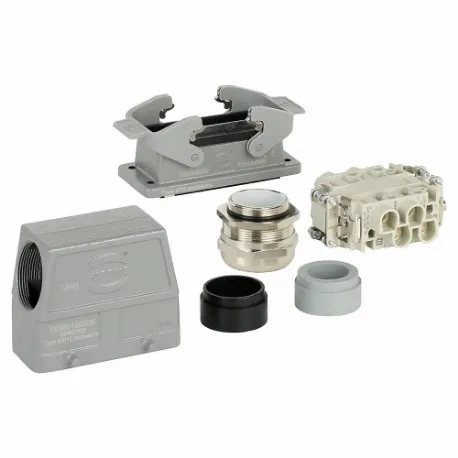

HARTING 73101000009 Modular Rectangular Connector Kit, Power/Signal, 16 B, Screw
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Connector Kit |
| Application | Power, Signal |
| Body Material | Die Cast Aluminum |
| Cable Entry Design | M40 Metal Cable Gland |
| Cable Entry Type | Metal Cable Gland |
| Cable Gland Material | Metal |
| Cable Gland Size | M40 |
| Connector Style | Bulkhead Mount Base with Double Lever |
| Current Rating | 16/80A |
| Entry Location | Side |
| For Cable Diameter | 20 mm to 32 mm |
| For Cable Diameter - Maximum | 32 mm |
| For Cable Diameter - Minimum | 20 mm |
| Height | 110.4 mm |
| Hood Orientation | Straight |
| Includes Cover | No |
| Insert Material | Polycarbonate |
| Ip Rating | IP66 |
| Kit Includes | Cable Gland, Female Insert, Hood, Housing, Male Insert |
| Length | 119.1 mm |
| Locking Type | Dual Lever |
| Maximum Contact Resistance | 0.3 M ohms |
| Maximum Operating Temperature | 125°C |
| Minimum Insulation Resistance | 1 x 10^10 ohms |
| Minimum Mating Cycles | 500 |
| Minimum Operating Temperature | -40°C |
| Mounting Hole Center To Center Distance | 32 mm x 130 mm |
| Mounting Type | Bulkhead |
| Nema Enclosure Rating | NEMA 12, NEMA 4, NEMA 4X |
| Number Of Contacts | 2 Signal + 4 Power + PE |
| Number Of Entries | 1 |
| Orientation | Straight Hood |
| Panel Cutout Size | 4.5 mm |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Seal Material | NBR |
| Series | Han-Com |
| Size Designation | Han 16 B |
| Standards | CE CERTIFIED, CSA CERTIFIED, DIN EN 175 301-801, DIN EN 61 984, UL LISTED |
| Voltage Rating | 600V |
| Wire Size | 16 AWG, 20 AWG to 14 AWG (Signal Module), 16 AWG, 20 AWG to 6 AWG (Power Module) |
| Wire Size - Maximum | 14 AWG (Signal Module), 6 AWG (Power Module) |
| Wire Size - Minimum | 16 AWG, 20 AWG |
| Wire Termination | Screw |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
09000005341 | Clamp | - | RFQ
|
 |
73101000014 | Connector Kit | - | RFQ
|
 |
73101000015 | Connector Kit | - | RFQ
|
 |
73101000013 | Connector Kit | - | RFQ
|
 |
73101000011 | Connector Kit | €548.91 | |
|
73101000006 | Connector Kit | €149.30 | |
|
73101000029 | Connector Kit | €219.26 |
