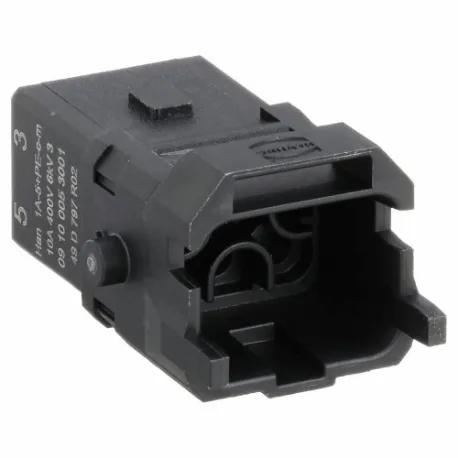

| Item | Insert |
| Application | Industrial Connectors |
| Connection Type | Crimp |
| Connector Gender | Male |
| Current Rating | 10A |
| Includes Poles | No |
| Insert Color | Black |
| Insert Material | Polyamide |
| Ip Rating | IP20 |
| Max. Operating Temp. | 90°C |
| Mfr. Series | HAN 1A Series |
| Min. Operating Temp. | -30°C |
| Minimum Mating Cycles | 100 |
| Number Of Poles | 5 |
| Voltage Rating | 400/600V |
| Wire Size | 0.14 sq. mm to 2.5 sq. mm |
| Maximum Operating Temperature | 90°C |
| Minimum Insulation Resistance | 1 x 10^8 ohms |
| Minimum Operating Temperature | -30°C |
| Series | Han 1A |
| Standards | CHINA ROHS, DNV GL, ELV COMPLIANT, EN 45545-2 R22: HL1, HL2, HL3, EN 45545-2 R23: HL1, HL2, HL3, EN 45545-2 R24: HL1, HL2, HL3, EN 60664-1, IEC 61373 CATEGORY 1 CLASS B, IEC 61984, ROHS COMPLAINT, UL/CSA |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
