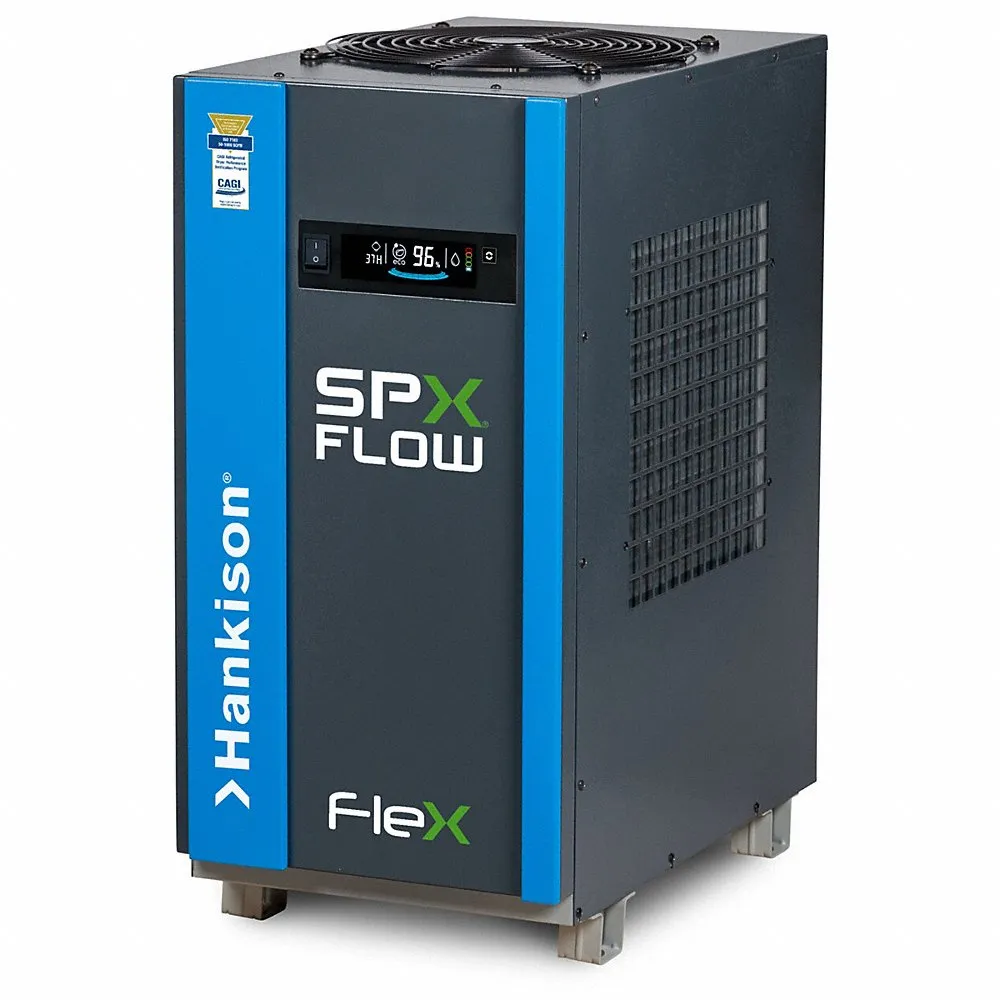

HANKISON FLX1.1 Cycling Refrigerated Compressed Air Dryer, Iso Class 5, 75 Scfm, 115VAC, 1 Inch Npt
Get it by Tuesday, Jun 17
€7,724.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Compressed Air Dryer |
| Air Inlet Gender | Female |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1" |
| Air Outlet Type | NPT |
| Cycling Type | Non Cycling |
| Dew Point | 39°F |
| Drain Included | Yes |
| Features | Linear Load Matching Is Achieved From 0% Up To 100% Demand, Minimal Energy Savings Are Realized From 100% Down To 0% Inlet Air Load, Non-Cycling Dryers Operate With The Refrigeration Compressor Running Continuously Regardless Of Inlet Load Conditions, Provides Cost-Effective Energy Savings By Matching Electrical Power Consumed In Direct Proportion To Air Demand |
| Filter Included | No |
| Finish | Powder Coat |
| Frequency | 60 Hz |
| Heat Exchanger Material | Stainless Steel |
| Housing Color | Gray |
| Housing Material | Sheet Steel |
| Includes | Compressor On Indicator, Dew Point Status Indicator, Dryer On Indicator, Energy Savings % Indicator, On/Off Switch |
| Input Voltage | 115V AC |
| Max. Ambient Temp. | 100°F |
| Max. Flow | 75 SCFM |
| Max. Inlet Temp. | 100°F |
| Mfr. Series | Flex Series |
| Overall Depth | 24" |
| Overall Height | 30" |
| Overall Width | 14" |
| Power | 0.43 kW |
| Pressure Drop | 2.9 psi |
| Refrigerant | R-134A |
| Iso Class | Class 5 |
| Maximum Ambient Temperature | 100°F |
| Maximum Flow | 75 SCFM |
| Maximum Inlet Temperature | 100°F |
| Phase | Single |
| Series | FLEX Series |
| Standards | CSA CERTIFIED |
| Weight | 120 lbs. |
| Ship weight (kg) | 62.1 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 35.56 |
| Country of Origin | KR |
