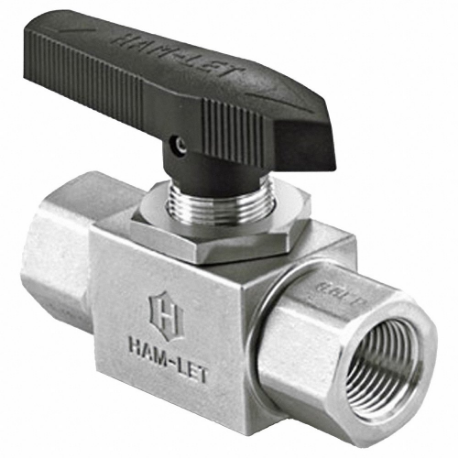

| Item | Ball Valve |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Opening Size | 0.19" |
| Ball Port Style | Full Port |
| Body Material | Stainless Steel |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT x FNPT |
| For Media | Combustible Gases, Corrosive Chemicals, Natural Gas, Water |
| Handle Color | Black |
| Handle Height | 1.53" |
| Handle Length | 1.22" |
| Handle Material | Plastic |
| Included Mounting | Not Applicable |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Nominal Valve Size | 1/4" |
| Overall Length | 2 13/25" |
| Pipe Schedule Compatibility | Not Applicable |
| Seat Material | MPTFE |
| Stem Type | Blowout Resistant |
| Tube Size | 1/4" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Structure | Three Piece |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Coefficient Of Volume (cv) | 0.9 |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Handle | Lever |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 3000 psi |
| Media Temp. Range | -30°F to 410°F |
| Seal Material | PTFE |
| Standards | ISO 15848-12006 (E) |
| Stem Material | 316 Stainless Steel |
| Valve Construction | Three-Piece |
| Valve Series | H6800 |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | IL |
| Product | Model | Price | |
|---|---|---|---|
 |
H-700-SS-L-10MM-T-LD | €250.97 | |
 |
H-800KL-SS-L-10MM | €383.42 | |
 |
H-800KL-SS-L-10MM-T | €478.73 | |
 |
H-6800-SS-L-12MM-CST | €1,000.74 | |
|
H-6800-SS-L-12MM-PST | €768.67 | |
|
H-700-SS-L-12MM-T-LD | €274.70 | |
 |
H-6800-SS-L-12MM-PSS | €603.38 |
