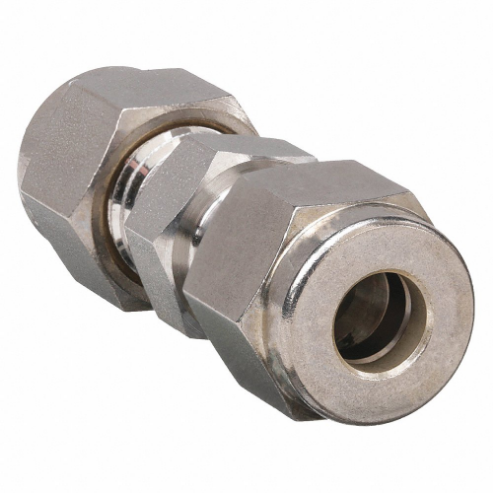

| Item | Straight Union |
| Application | Air, Chemicals, Non-Potable Water |
| Basic Material | Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Stainless Steel |
| Compression Thread Size | 7/16"-20 |
| Connection Type | Compression |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Grade | Grade 316 |
| Hex Size | 1/2" |
| Material | Stainless Steel |
| Max. Pressure | 4100 psi to 10300 psi |
| Specific Pipe Fitting Shape | Union |
| System Of Measurement | Imperial |
| Thread Size | 7/16"-20 |
| Tube Size | 1/4" |
| Compatible Fitting Brands | LET LOK, Swagelok |
| Fitting Material | Stainless Steel |
| Material Grade | Grade 316 |
| Maximum Operating Pressure | 10300 psi |
| Maximum Operating Temperature | 1200°F |
| Minimum Operating Temperature | 425°F |
| Overall Length | 1 5/8" |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Shape | Straight Connector |
| Standards | ASTM A276, ASTM A479, DIN EN10272 |
| Thread Size A | 7/16"-20 |
| Thread Size B | 7/16"-20 |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 1.27 |
| HS code | 7307290090 |
| Country of Origin | IL |
| Model | Compression Thread Size | Hex Size | Max. Pressure | Tube Size | Price | |
|---|---|---|---|---|---|---|
| 762L SS 1/2 | 3/4-20 | 13/16" | 2650 to 6750 psi | 1/2" | €96.08 | |
| 762L SS 3/4 | 1-20 | 1-1/16" | 2450 to 5850 psi | 3/4" | €126.77 | |
| 762L SS 3/8 | 9/16-20 | 5/8" | 3350 to 6550 psi | 3/8" | €61.95 |
