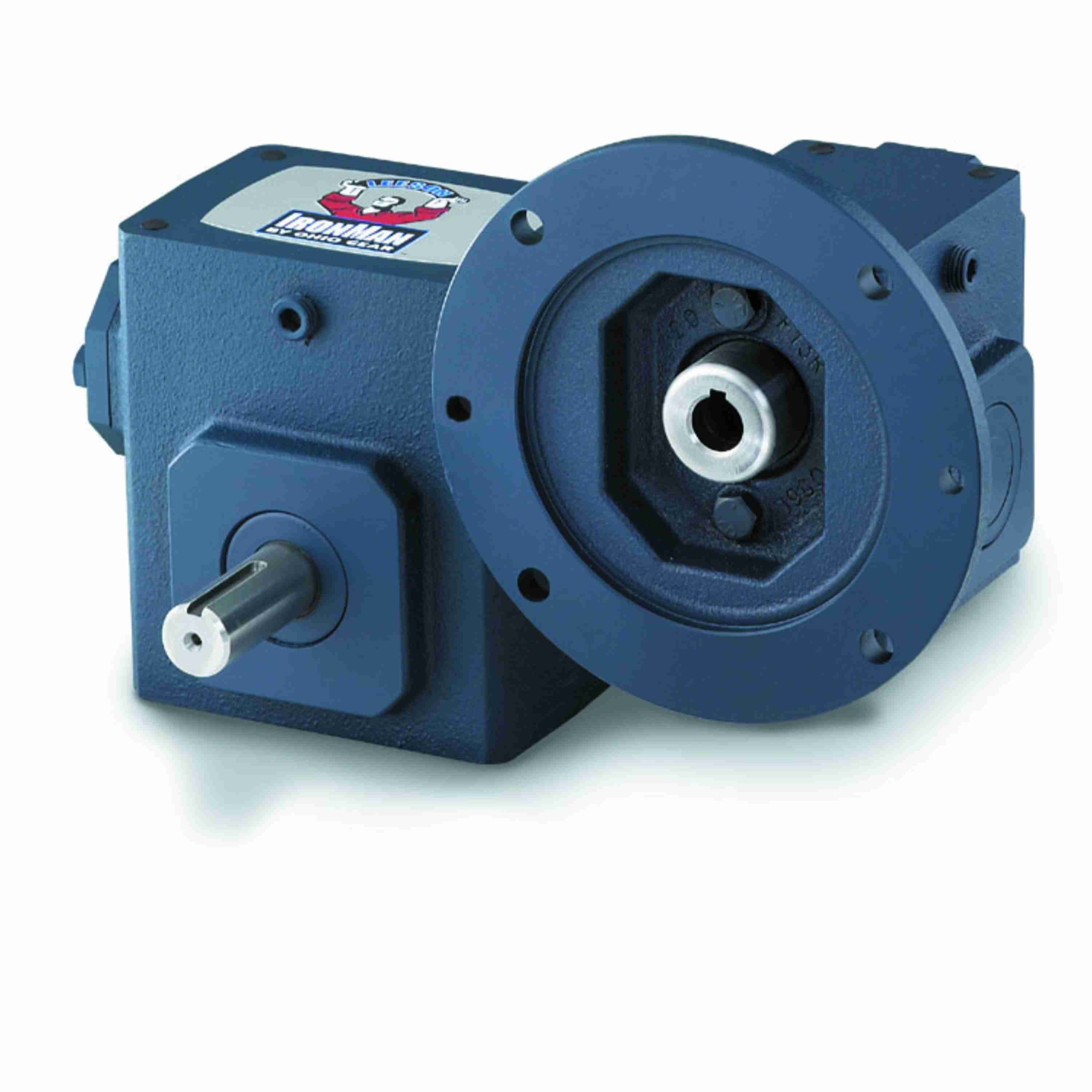

GROVE GEAR GR8242099.00 GR-DMQ824-1200-R1-56 Double Reduction Reducer, 1200:1 Ratio, 1.125 Inch Output Diameter, Cast Iron
€1,391.21 /unit
Request a Quote
Payment
Payment
| Item | Reducer |
| Center Distance | 2.38" |
| Frame | 56C |
| Gear Type | Double Worm |
| Housing Material | Cast Iron |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 11/125 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 2 |
| Output Diameter | 1 1/8" |
| Output Hp | 17/500 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 1.46 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | DMQ |
| Output Shaft Orientation | R1 |
| Output Torque | 1418 lbs.-in. |
| Overhung Load | 1770 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Double |
| Series | GR Series |
| Series Style | GR-DMQ |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| Weight | 61 lbs. |
| Ship weight (kg) | 27.45 |
| Product | Model | Price | |
|---|---|---|---|
 |
GR8242111.00 | €1,427.70 | RFQ
|
