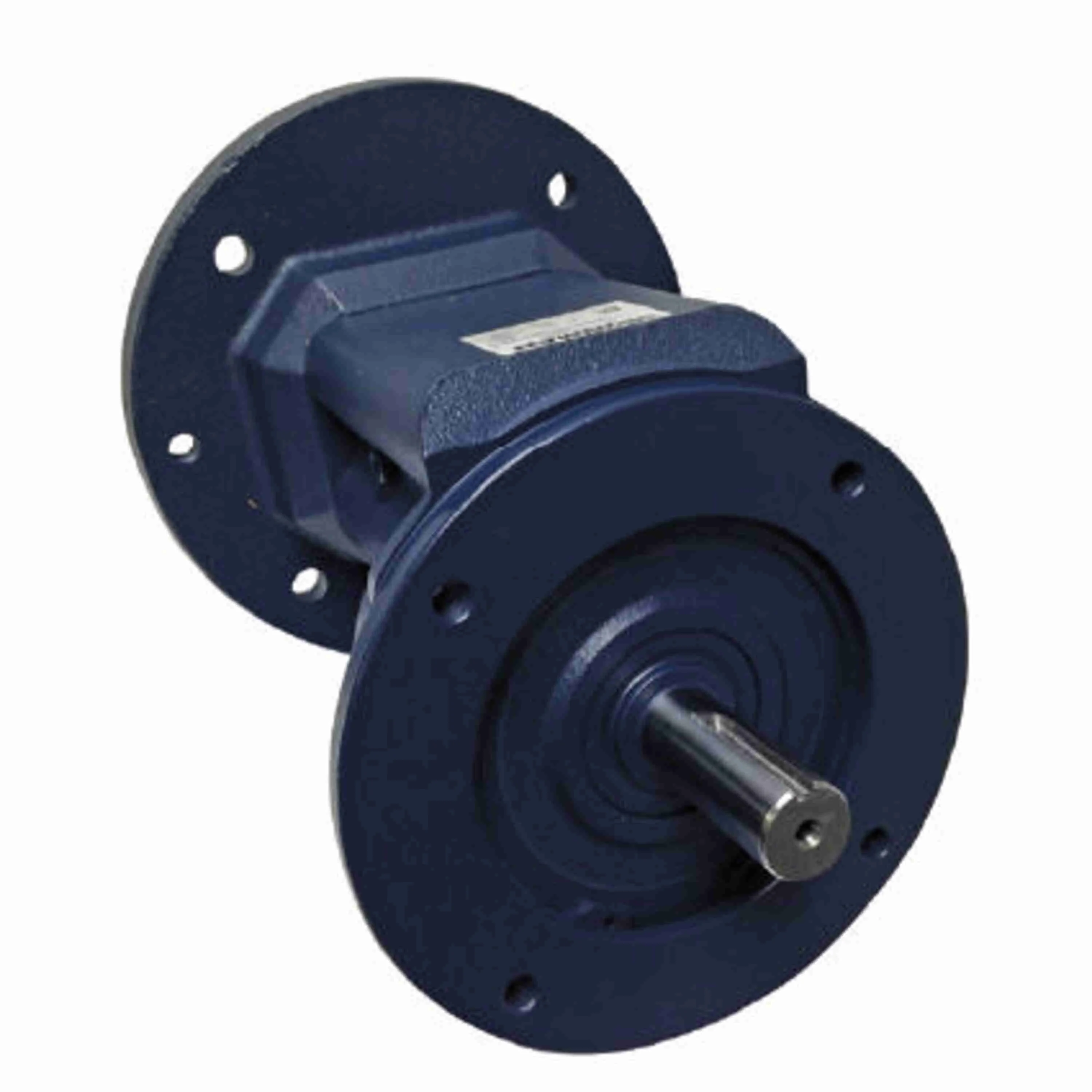

GROVE GEAR 707072L TXMQ3-2.964-210-180 Ratio Multiplier, 2.964:1 Ratio, 1.125 Inch Output Diameter
€912.19 /unit
Request a Quote
Payment
Payment
Item | Reducer |
Gear Type | Helical, Worm |
Gearbox Style | TXMQ3 |
Housing Material | Cast Iron |
Input Hp @ 1750 Rpm | 12 49/50 hp |
Input Rpm | 1750 RPM |
Input Style | C Face Quill |
Input/output Flange | 180 to 210 |
Material | Cast Iron |
Output Diameter | 1 1/8" |
Output Hp | 12 18/25 hp |
Output Rpm | 590 RPM |
Output Shaft | Shaft |
Output Style | Solid Output Shaft |
Output Torque | 1357 lbs.-in. |
Overhung Load | 900 lbs. |
Product Line | Ratio Multiplier |
Reducer Style | TXMQ3 |
Reduction Type | Single |
Service Factor | 1 |
Size | 3 |
Weight | 45 lbs. |
Ship weight (kg) | 20.25 |
