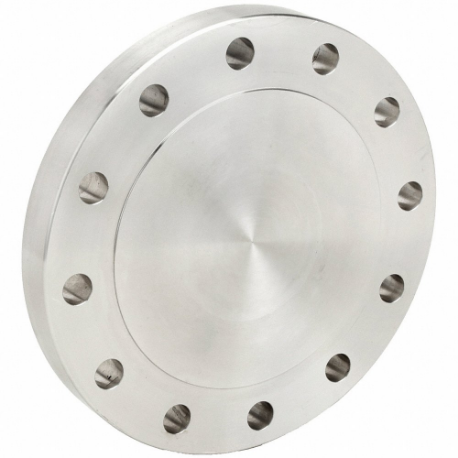

GRAINGER FLS63RFBL600 Flange, 6 Inch Pipe Size, 14 Inch Flange Outside Dia, Class 300, Stainless Steel
Get it by Tuesday, Jun 17
€1,837.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Flange |
| Application | Air, Natural Gas, Non-Potable Water, Potable Water, Propane, Steam |
| Basic Fitting Shape | Flange |
| Bolt Circle Dia. | 10 5/8" |
| Bolt Hole Dia. | 7/8" |
| Class | Class 300 |
| Color | Silver |
| Connection Surface | Raised Face |
| Connection Type | Blind |
| Finish/coating | Stainless Steel |
| Fitting Material | Stainless Steel |
| Flange O.d. | 14" |
| Flange Thickness | 1 3/8" |
| Grade | Grade 316L |
| Max. Operating Pressure | 600 psi |
| Max. Steam Pressure | 840 psi |
| Number Of Bolt Holes | 12 |
| Overall Length | 12 1/2" |
| Pipe Size | 6" |
| Schedule | Schedule 40 |
| Specific Fitting Shape | Blind Flange |
| Temp. Range | -10°F to +1000°F |
| Thread Configuration | Unthreaded |
| Bolt Circle Diameter | 10 5/8" |
| Bolt Hole Diameter | 7/8" |
| Fitting Connection Type | Blind |
| Flange Outside Diameter | 14" |
| For Pipe Schedule | 40 |
| Material Grade | 316L |
| Maximum Operating Pressure | 600 psi |
| Pipe Fitting Material | Stainless Steel |
| Standards | ASME B16.5/ ASTM A182 |
| Thread Size | Non Threaded |
| Ship weight (kg) | 21.96 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
FLS63RFTH600 | Threaded Flange | €2,413.41 | |
 |
FLS63RFSO600 | Flange | €1,775.02 | |
 |
4381000030 | Flange | €88.67 | |
 |
4381000000 | Flange | €52.94 | |
|
4381000060 | Flange | €142.08 | |
|
4381000010 | Flange | €58.25 | |
|
4381000090 | Flange | €267.33 |
