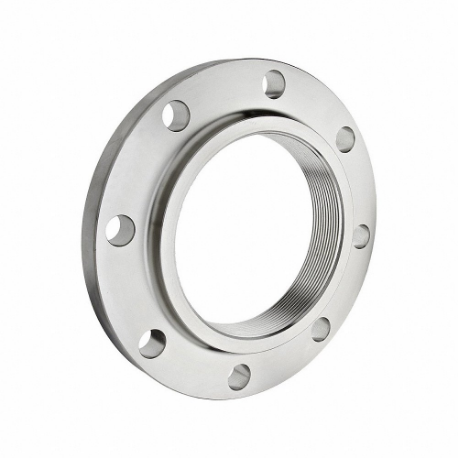

GRAINGER FLS63RFTH600 Threaded Flange, 6 Inch 316L RF Thread Flange 300#, Threaded Flange, 316L Stainless Steel, 6 Inch Pipe Size
Get it by Tuesday, Jun 17
€2,413.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Threaded Flange |
| Application | Air, Natural Gas, Non-Potable Water, Potable Water, Propane, Steam |
| Basic Fitting Shape | Flange |
| Bolt Circle Dia. | 10 5/8" |
| Bolt Hole Dia. | 7/8" |
| Class | Class 300 |
| Color | Silver |
| Connection Surface | Raised Face |
| Connection Type | FNPT |
| Finish/coating | Stainless Steel |
| Fitting Material | Stainless Steel |
| Fitting Side A Pipe Threading | 8 |
| Flange O.d. | 14" |
| Flange Thickness | 1 3/8" |
| Grade | Grade 316L |
| Max. Operating Pressure | 600 psi |
| Max. Steam Pressure | 840 psi |
| Number Of Bolt Holes | 12 |
| Overall Length | 12 1/2" |
| Pipe Size | 6" |
| Schedule | Schedule 40 |
| Specific Fitting Shape | Threaded Flange |
| Temp. Range | -10°F to +1000°F |
| Thread Dia. | 1.51" |
| Bolt Circle Diameter | 10 5/8" |
| Bolt Hole Diameter | 7/8" |
| Fitting Connection Type | FNPT |
| Flange Outside Diameter | 14" |
| For Pipe Schedule | 40 |
| Material Grade | 316L |
| Maximum Operating Pressure | 600 psi |
| Pipe Fitting Material | Stainless Steel |
| Standards | ASME B16.5/ ASTM A182 |
| Thread Size | 1.51" |
| Ship weight (kg) | 17.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
