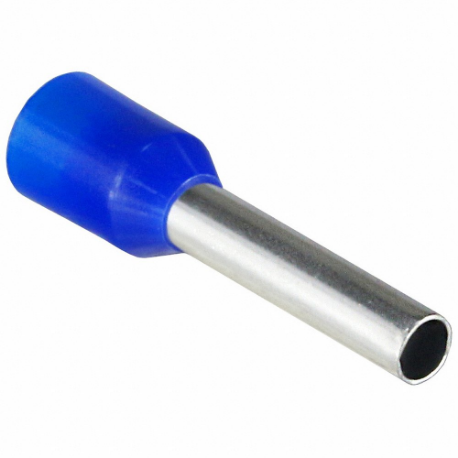

| Item | Ferrule |
| Barrel Dia. | 0.17" |
| Barrel Finish | Tin Plated |
| Barrel Length | 0.29" |
| Barrel Material | Copper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Ferrule Diameter | 0.1" |
| Ferrule Material | Copper |
| Insertion Length | 0.469" |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Max. Operating Temp. | 221°F |
| Max. Wire Size | 14 AWG |
| Maximum Conductors | 1 |
| Min. Wire Size | 14 AWG |
| Overall Length | 0.71" |
| Rohs Compliant | Yes |
| Special Features | Funnel Entry, Seamless Barrel, Suitable For Limited Space Applications, Type E |
| Strip Length | 0.562" |
| Termination Type | Crimp |
| Barrel Diameter | 0.17" |
| Maximum Operating Temperature | 221°F |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 14 AWG |
| Standards | CULUS LISTED |
| Termination Style | Crimp |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
