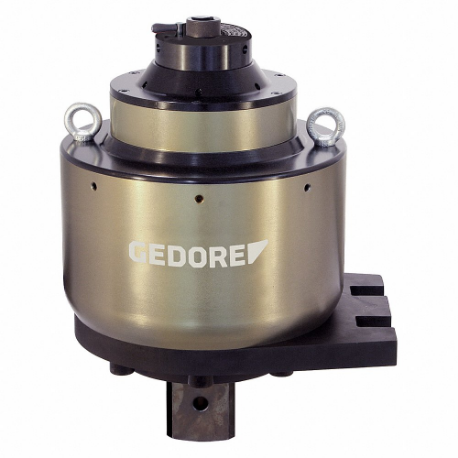

GEDORE DVV-540RS Torque Multiplier, 3/4 Inch, 2 1/2 Inch Male Output Square Drive
Get it by Wednesday, Jun 18
€43,427.57 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Torque Multiplier |
| Accuracy | -3% to +3% |
| Angle Of Turn Protractor | 5° |
| Antibacklash Device | Self Contained |
| Calibration Certificate Included | Yes |
| Color | Gold |
| Female Input Square Drive | 3/4" |
| Finish | Chrome |
| Gear Ratio | 1:175 |
| Gear System | 3 Stage Planetary |
| Handle Length | 2 1/2" |
| Head Dia. | 10 5/8" |
| Head Thickness | 16.344" |
| Insulated | No |
| Male Output Square Drive | 2 1/2" |
| Material | Aluminum |
| Max. Rated Input | 280 lbs.-ft. |
| Max. Rated Output | 40330 lbs.-ft. |
| Measurement Type | SAE |
| Mountable | Yes |
| Non-sparking | No |
| Overall Height | 16.344" |
| Overall Length | 6.562" |
| Overall Width | 10 5/8" |
| Overload Protection | No |
| Reaction System | Plate |
| Torque Measurement Type | Foot Pound |
| Torque Ratio | 1:175 |
| Weight | 46.08 lbs. |
| Nonsparking | No |
| Ship weight (kg) | 63.76 |
| Ship height (cm) | 41.51 |
| Ship length (cm) | 16.67 |
| Ship width (cm) | 26.99 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
DVV-40Z | €7,888.27 | |
 |
DVV-40ZRS | €8,424.29 | |
 |
DVV-13ZG | €4,407.91 | |
 |
DVV-100ZRS | €27,076.69 | |
 |
DVV-60ZRS | €12,748.84 | |
 |
DVV-130ZRS | €32,328.83 | |
 |
DVV-80ZRS | €21,979.04 |
