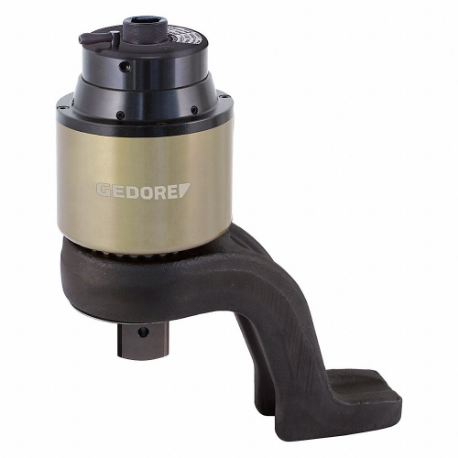

GEDORE DVV-80ZRS Torque Multiplier, 3/4 Inch, 1 1/2 Inch Male Output Square Drive
Get it by Wednesday, Jun 18
€21,979.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Torque Multiplier |
| Accuracy | -3% to +3% |
| Angle Of Turn Protractor | 5° |
| Antibacklash Device | Self Contained |
| Calibration Certificate Included | Yes |
| Color | Gold |
| Female Input Square Drive | 3/4" |
| Finish | Chrome |
| Gear Ratio | 1:22 |
| Gear System | 2 Stage Planetary |
| Handle Length | 7.484" |
| Head Dia. | 5.047" |
| Head Thickness | 13 1/2" |
| Insulated | No |
| Male Output Square Drive | 1 1/2" |
| Material | Aluminum |
| Max. Rated Input | 310 lbs.-ft. |
| Max. Rated Output | 5870 lbs.-ft. |
| Measurement Type | SAE |
| Mountable | Yes |
| Non-sparking | No |
| Overall Height | 13.469" |
| Overall Length | 10" |
| Overall Width | 5.047" |
| Overload Protection | No |
| Reaction System | Z Form Reaction Arm |
| Torque Measurement Type | Foot Pound |
| Torque Ratio | 1:22 |
| Weight | 29.54 lbs. |
| Nonsparking | No |
| Ship weight (kg) | 13.17 |
| Ship height (cm) | 34.21 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 12.82 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
DVV-40Z | €7,888.27 | |
 |
DVV-40ZRS | €8,424.29 | |
 |
DVV-13ZG | €4,407.91 | |
 |
DVV-100ZRS | €27,076.69 | |
 |
DVV-60ZRS | €12,748.84 | |
 |
DVV-130ZRS | €32,328.83 | |
 |
DVI-20Z | €4,586.59 |
