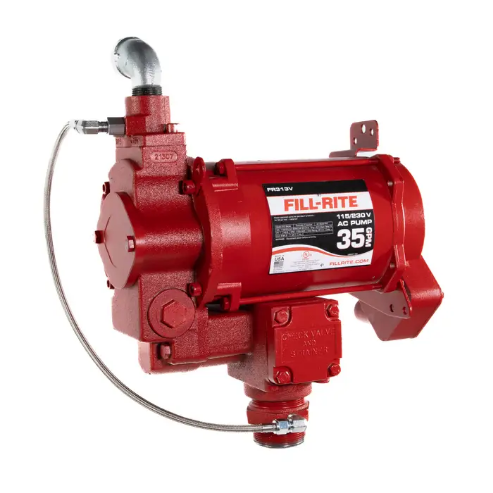

| Item | Fuel Transfer Pump |
| Bearing Type | Sealed |
| Bypass Valve | Yes |
| Duty Cycle | 30 min. |
| Features | Iron Rotor With Carbon Rotary Vanes, Pressure Relief Valve, Self Priming |
| Full Load Amps | 5.5A |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Inlet Size | 1 1/4" |
| Max. Flow Rate | 35 GPM |
| Max. Viscosity | 50 SUS |
| Media Type | Bio-Diesel Up To B20 E15. Kerosene, Diesel, Gasoline |
| Metered | No |
| Outlet Size | 1" |
| Overall Height | 16 1/2" |
| Overall Length | 12" |
| Overall Width | 16" |
| Pressure | 0 psi to 16 psi |
| Pump Application | Agriculture, Construction, Farming |
| Pump Design | Rotary Vane |
| Pump Mount Size | 2" |
| Rated Voltage | 115/230V AC |
| Seal Material | Carbon |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Agency Compliance | cULus |
| Discharge Connection Type | NPT |
| Discharge Hose Size | Not Included |
| For Container Size | 10000 gal. |
| For Media Type | Biodiesel, Diesel, E15, Kerosene |
| Full Load Current (a) | 11.4A |
| Includes | Installation Components |
| Max. Head | 60 ft. |
| Max. Head Pressure | 26 psi |
| Max. Outlet Pressure | 26 psi |
| Motor Hp | 3/4 hp |
| Motor Speed (rpm) | 1725 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Type | Not Included |
| Power Source | Electric |
| Pump Connection Type | NPT |
| Pump Kit Type | Pump Only |
| Self-priming | Yes |
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 50.17 |
| Ship width (cm) | 56.67 |
| Country of Origin | US |
