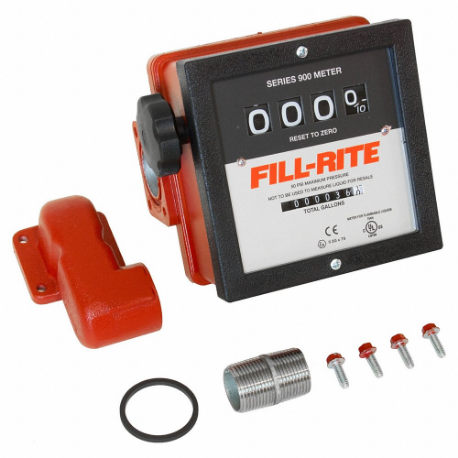

| Item | Mechanical Flowmeter |
| Application | Agriculture, Construction, Industrial, Mining, Municipalities |
| Chamber Material | Polypropylene |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Mechanical |
| Fitting Material | Brass |
| Flow Range | 6-40 GPM |
| Flow Rate Range | 6-40 GPM |
| Fluid Temp. | -40°F to +140°F |
| For Pipe Size | 1" |
| Housing Material | Aluminum |
| Master Totalizer | 999999 gal. |
| Max. Flow Rate | 40 GPM |
| Max. Pressure | 50 psi |
| Max. Viscosity | 50 SUS |
| O-ring Material | Buna N |
| Overall Height | 6 1/2" |
| Overall Length | 10 1/2" |
| Overall Width | 7 1/2" |
| Resetable Cumulative Totalizer | 9999 gal. |
| Seal Material | Buna N |
| Thread | NPT |
| Type | Liquid |
| Wetted Material | Aluminum, Buna N, Fluorocarbon, Nickel, PTFE, Ryton, Stainless Steel |
| Accuracy | +/-2% |
| Compatible Flow Material | Diesel, Gasoline, Kerosene, Petroleum Fluids, Solvents |
| Flow Rate | 6-40 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 1" FNPT |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Manufacturer Warranty Length | 2 yrs. |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 50 psi |
| Media Temp. Range | -40°F to 140°F |
| Min. Flow Rate | 6 GPM |
| Min. Media Temperature | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| Product Type | 4-Digit Mechanical Fuel Transfer Meter |
| Pulse Rate | 10 pulses/gal. |
| Rotor Material | PPS |
| Shaft Material | Stainless Steel |
| Standards | CE CERTIFIED, CULUS LISTED |
| Unit Of Measure | Gallons |
