FILLRITE

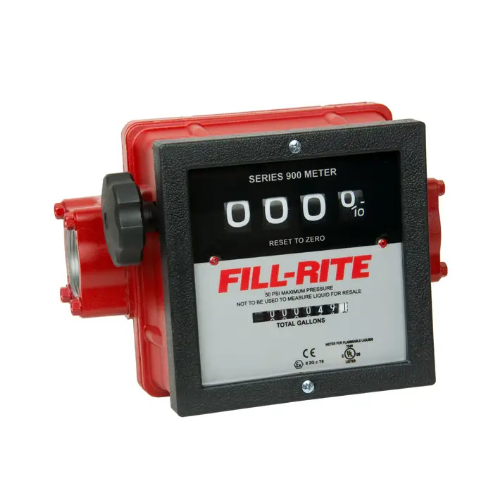

FILLRITE 901C1.5 Liquid Mechanical Flowmeter, 1-1/2 Inch MNPT Connection | AD9GBE 4RP92

FILLRITE 901C1.5 Liquid Mechanical Flowmeter, 1-1/2 Inch MNPT Connection

In Stock
Item: AD9GBE Model: 901C1.5Cross Ref: 4RP92
Check Availability
See variants (10)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€622.11 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFlowmeter
Accuracy+/-2.0 %
Chamber MaterialRyton/Stainless Steel
Connection Size1-1/2 MNPT
DisplayMechanical Register with Large Easy-to-read Numbers
Flow MaterialGasoline, Diesel, Kerosene, Mineral Spirits, Stoddard Solvents and Heptane
Flow Range6 to 40 gpm
GPM Max.40
Height5.5"
Housing MaterialAluminum
Length9.25"
Master Totalizer1,000,000 gal.
Max. Pressure50 psi
Max. Viscosity50
Seal MaterialViton(R) and Buna
Temp.150
ThreadNPT
TypeLiquid
Width6.25"

Shipping Info:

Ship weight (kg) 3.49
Ship height (cm)19.05
Ship length (cm)17.02
Ship width (cm)26.92
HS code9026104000
Country of OriginUS

Product Details:

  • Fill-Rite 901C1.5 flow meter designed for measuring liquid flow rates with an accuracy of +/-2% for applications like fuel dispensing pumps & industrial flow measurement
  • Nickel plated aluminium construction for durability, 4-digit display, 90 degree increments for easy installation in both vertical & horizontal orientations and easy field calibration with improved accuracy
  • Features Viton and Buna-N seals for offering excellent sealing against moisture to internal components
  • Compatibility with fluids including gasoline, diesel, B20, E15 and kerosene
  • UL listed, CE marked and Ex certified

Product Variants

ProductModelLengthAccuracyConnection SizeMax. ViscositySeal MaterialTemp.ThreadTypePrice
FILLRITE 807CN1 Liquid Mechanical Flowmeter, Viton Seal, FNPT Connection | AB2VRY 1P951 807CN18"+/-1.0 %1 MNPT50Viton150NPTLiquid€567.79
FILLRITE 900CD Digital Flow Meter, 50 PSI, NPT Threads, 6 - 40 GPM | AC4RXQ 30J078 900CD8"+/- 125 %1 MNPT50 SSUBuna/Viton140 Degrees FNPTNutating Disk€758.52
FILLRITE 900CD1.5 Liquid Mechanical Flowmeter, Nutating Disc Mechanism | AC4RXR 30J079 900CD1.58"+/- 125 %1-1/2 MNPT50 SSUBuna/Viton140 Degrees FNPTNutating Disk€852.94
FILLRITE 900CDBSPT Liquid Mechanical Flowmeter, BSPT Threads, 1 Inch Pipe Size | AC4RXT 30J080 900CDBSPT8"+/- 125 %1 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 900CD1.5BSPT Liquid Mechanical Flowmeter, 1-1/2 Inch BSPT Threads | AC4RXU 30J081 900CD1.5BSPT8"+/- 125 %1-1/2 BSPT50 SSUBuna/Viton140 Degrees FBSPPNutating Disk€933.75
FILLRITE 807C1 Liquid Mechanical Flowmeter, 1 Inch MNPT Connection | AD9GBD 4RP91 807C18"+/-1.0 %1 MNPT50Viton(R) and Buna150NPTLiquid€416.44
FILLRITE 807C Liquid Mechanical Flowmeter, 3/4 Inch FNPT Connection | AH2BQF 24KJ09 807C8"-3/4"-----€440.04
