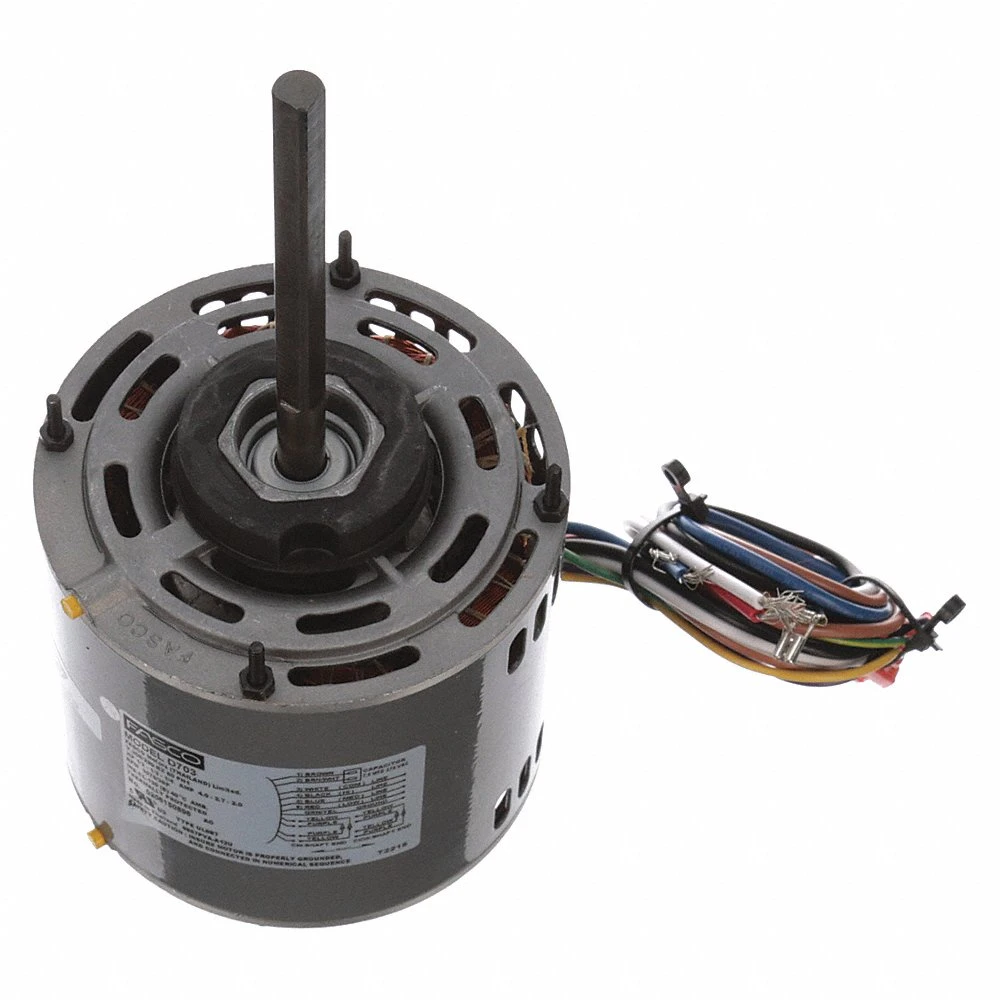

| Item | Direct Drive Blower Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/4" |
| Capacitor Required | 2MDV6 |
| Dia. | 5 5/8" |
| Diameter | 5 5/8" |
| Duty Cycle | Continuous |
| Efficiency | 59% |
| Enclosure Type | Open Dripproof |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4/2.7/2A |
| Hp | 1/2 hp, 1/3 hp, 1/4 hp |
| Insulation Class | Class B |
| Lead Length | 26" |
| Length | 11 5/8" |
| Length Less Shaft | 4 5/8" |
| Motor Application | HVAC/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 9/16" |
| Mounting Stud Pattern | 3 11/16" x 3 11/16" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| No. Of Studs | 4 |
| Nominal Efficiency | 0.59% |
| Number Of Shafts | 1 |
| Overall Length | 11 5/8" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring Dia. | 2 1/2" |
| Ring To Ring Center | 5 13/16" |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Type | Double Flat |
| Stud Location | Shaft End |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Double-Flat |
| Mounting Stud Location | 4/Shaft End |
| Nameplate Rpm | 1075 RPM |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Stud Size | #8-32 |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.47 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
