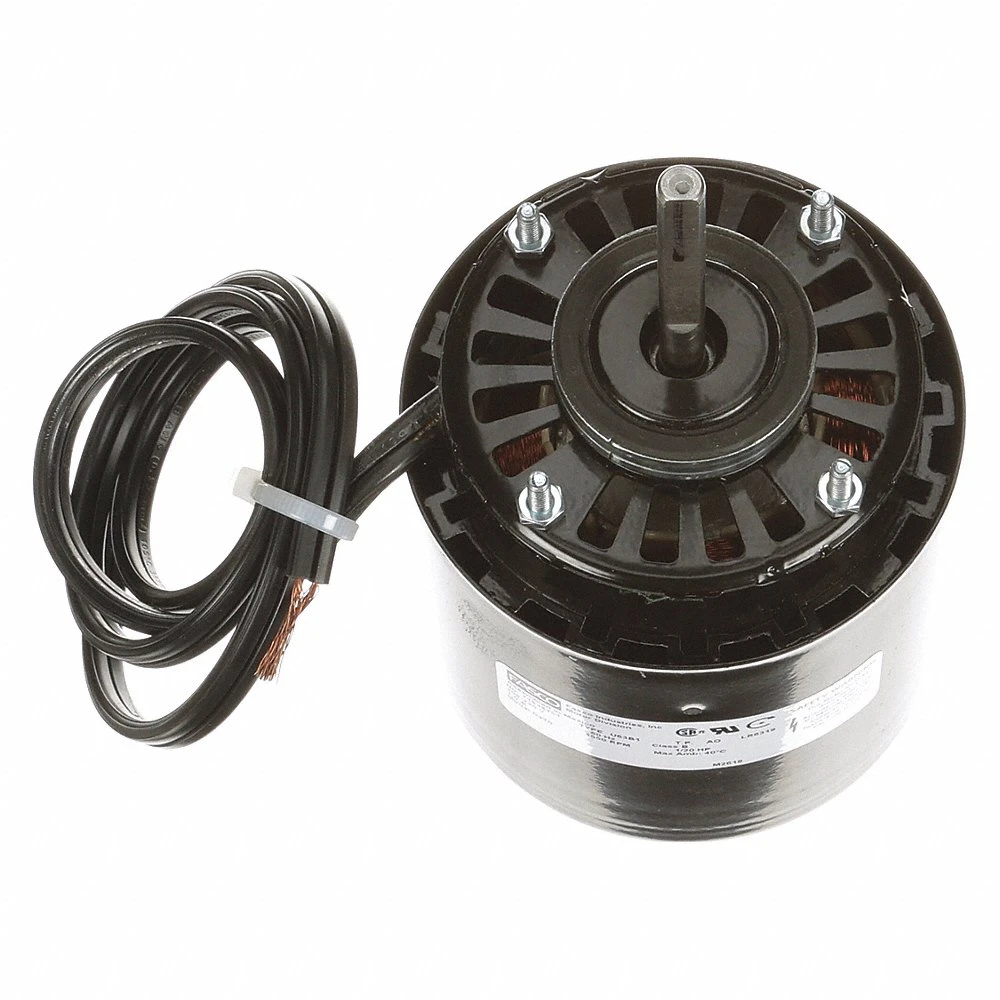

| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Cord Length | 32" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1A |
| Hp | 1/20 hp |
| Insulation Class | Class B |
| Lead Length | 33" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Refrigerator/Freezer |
| Motor Enclosure Design | Open Air Over |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Type | Shaded Pole |
| Mounting Type | Extended Studs |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Overall Length | 6.97" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 5/8" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 5 1/16" |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Mounting Holes | (4) #8-32 |
| Mounting Stud Location | 4/Shaft End |
| Nameplate Rpm | 1550 RPM |
| Number Of Shafts | 1 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 4 lbs. |
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
| Product | Model | Bearings | Cord Length | Full Load Amps | HP | Hz | Length Less Shaft | Motor Application | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D0396 | Sleeve | 14" | 0.9-1.0 | 1/20 | 60 | 3.25" | General Application | 1450 | €138.68 | |
 |
D1124 | Sleeve | 13" | 2.1 | 1/20 | 60 | 3" | H VAC/R | 1550 | €144.33 | |
|
D1126 | Sleeve | 13" | 1.1-1.1 | 1/15 | 50/60 | 3.625" | H VAC/R | 1550 | €136.56 | |
 |
D1101 | Sleeve | 15" | 1.9 | 1/20 | 60 | 2.75" | H VAC/R | 1500 | €141.90 | |
 |
D1103 | Sleeve | 15" | 1.15-1.35 | 1/20 | 50/60 | 3" | H VAC/R | 1500 | €153.37 | |
 |
D471 | Sleeve | 35" | 1.1-1.1 | 1/20 | 60 | 4.25" | H VAC/R | 1550 | €249.22 | |
 |
D671B | Ball | - | 1.9/0.84-0.94 | 1/15 | 60 | 4.5" | H VAC/R | 1550 | €235.64 |
