| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Cord Length | 15" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.9A |
| Hp | 1/20 hp |
| Insulation Class | Class B |
| Lead Length | 14" |
| Max. Ambient Temp. | 40°C |
| Motor Application | OEM Replacement |
| Motor Enclosure Design | Open Air Over |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Shaded Pole |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1500 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Overall Length | 5 5/16" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Service Factor | 1 |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Stud Location | Both Ends |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 3 5/16" |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Sub Application | OEM Replacement |
| Motor Thermal Protection | Auto |
| Mounting Holes | (8) #8-32 |
| Mounting Stud Location | 4/Both Ends |
| Number Of Shafts | 1 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 3 lbs. |
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |

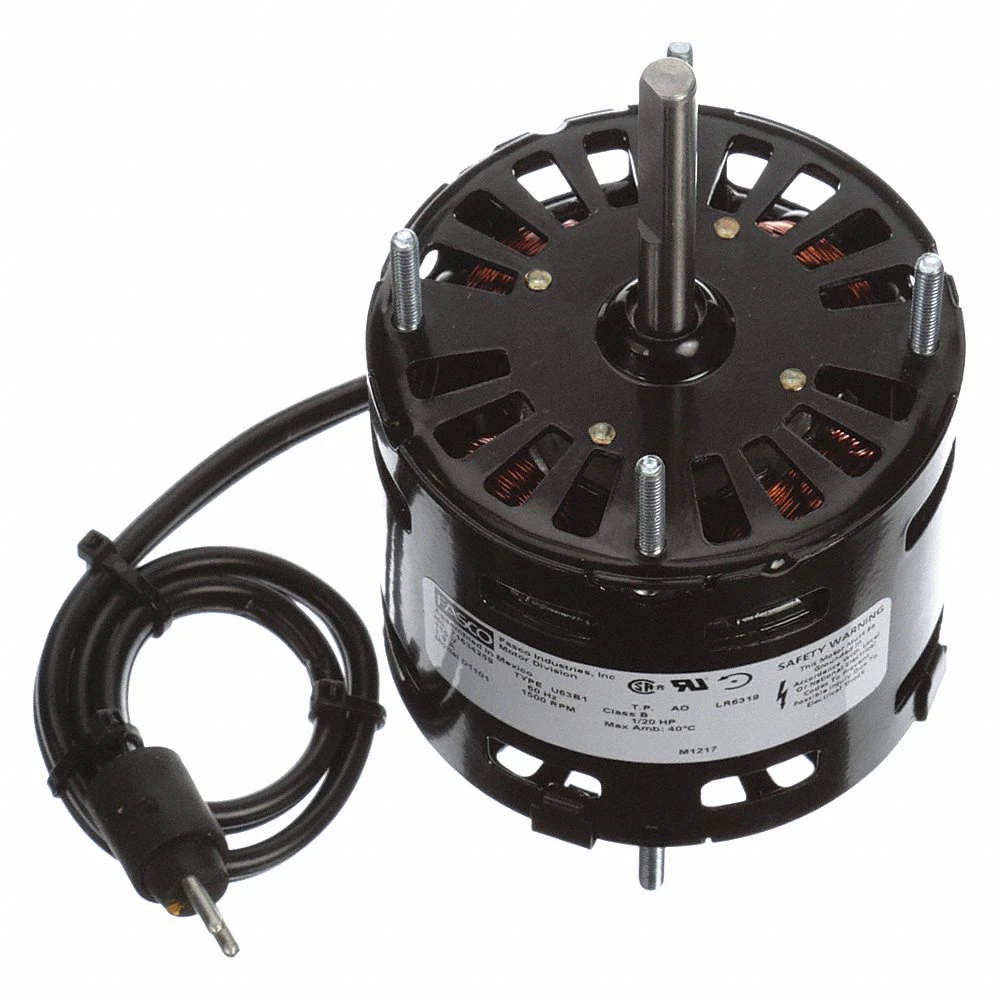

Fasco D1101 HVAC motor is ideal for driving the rotation of fans and blowers, ensuring efficient air circulation and temperature control within HVAC units.
A. This motor allows stud mounting for a secure and stable attachment to various components within the HVAC system.
A. It can operate at ambient temperatures up to 40 degrees C.
A. Dayton 19L413 contactor service kit can be used to maintain this motor. It consists of round and oval run capacitors, resistors, wire jumpers, wire nuts, quick disconnects, contactors, capacitor boots and capacitor brackets to help field-based HVAC contractors maintain and repair motor capacitors.
| Product | Model | Bearings | Cord Length | Full Load Amps | HP | Hz | Length Less Shaft | Motor Application | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D0396 | Sleeve | 14" | 0.9-1.0 | 1/20 | 60 | 3.25" | General Application | 1450 | €138.68 | |
 |
D1124 | Sleeve | 13" | 2.1 | 1/20 | 60 | 3" | H VAC/R | 1550 | €144.33 | |
|
D1126 | Sleeve | 13" | 1.1-1.1 | 1/15 | 50/60 | 3.625" | H VAC/R | 1550 | €136.56 | |
 |
D1103 | Sleeve | 15" | 1.15-1.35 | 1/20 | 50/60 | 3" | H VAC/R | 1500 | €153.37 | |
 |
D470 | Sleeve | 32" | 1.0-1.0 | 1/20 | 60 | 4.25" | H VAC/R | 1550 | €250.00 | |
 |
D471 | Sleeve | 35" | 1.1-1.1 | 1/20 | 60 | 4.25" | H VAC/R | 1550 | €249.22 | |
 |
D671B | Ball | - | 1.9/0.84-0.94 | 1/15 | 60 | 4.5" | H VAC/R | 1550 | €235.64 |
