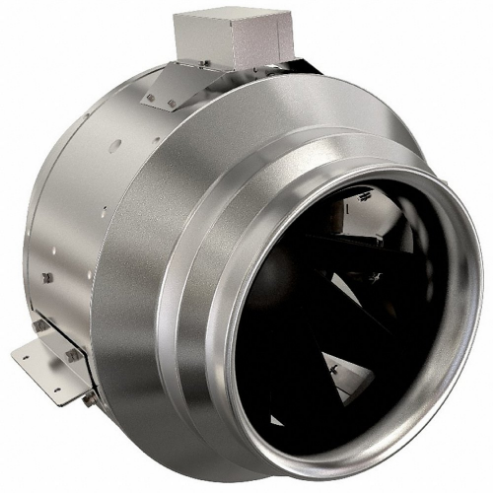

FANTECH FKD 18XL 40024 Mixed Flow Fan, 18 Inch Duct, With Metal Housing, 6236 cfm, 230-460V, 3 Phase
Get it by Monday, Jun 16
€3,382.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Mixed Flow Duct Fan |
| Application | General Purpose |
| Bearing Type | Sealed Ball |
| Cfm @ 0.000-in. Sp | 6236 CFM |
| Cfm @ 0.125-in. Sp | 6115 CFM |
| Cfm @ 0.250-in. Sp | 5995 CFM |
| Cfm @ 0.375-in. Sp | 5874 CFM |
| Cfm @ 0.500-in. Sp | 5754 CFM |
| Cfm @ 0.750-in. Sp | 5500 CFM |
| Cfm @ 1.000-in. Sp | 5199 CFM |
| Cfm @ Duct | 6236 CFM |
| Duct Dia. | 18" |
| Fits Duct Dia. | 18" |
| Flange Width | 1 3/4" |
| For Fan Type | Centrifugal Duct Fan |
| High-efficiency Motor | No |
| Housing Dia. | 22 1/4" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | Mounting Brackets |
| Inlet And Outlet Dia. | 18" |
| Length | 27 1/4" |
| Max. Amps | 3.75A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 2208 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Speed | 1700 RPM |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Overall Dia. | 26" |
| Phase | 3 |
| Speed Control | No , Yes |
| Speed Control Included | Yes |
| Voltage | 430V |
| Airflow @ 0.000 In Sp | 5463 CFM |
| Duct Diameter | 18" |
| Maximum Inlet Air Temperature | 140°F |
| Motor Enclosure | Totally Enclosed |
| Motor Ip Rating | IP54 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 230/460V AC |
| Overall Diameter | 26" |
| Overall Height | 27 1/4" |
| Overall Width | 26" |
| Speed Controllable | Yes |
| Standards | AMCA, CULUS |
| Ship weight (kg) | 68.4 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 69.22 |
| Ship width (cm) | 66.04 |
| HS code | 8414596060 |
| Country of Origin | DE |
| Product | Model | Bearing Type | Cfm @ 0.000-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.250-in. Sp | Cfm @ 0.375-in. Sp | Cfm @ 0.500-in. Sp | Cfm @ 0.750-in. Sp | Cfm @ 1.000-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FKD12XL | Ball | 2016 | 1920 | 1832 | 1746 | 1649 | 1423 | 1066 | €846.93 | |
 |
FKD 8XL | Sealed Ball | 836 | 799 | 761 | 720 | 680 | 595 | 499 | €694.21 | |
 |
FKD 10 | Sealed Ball | 910 | 873 | 836 | 795 | 752 | 653 | 547 | €784.10 | |
 |
FKD 10XL | Sealed Ball | 1266 | 1226 | 1187 | 1147 | 1100 | 1006 | 911 | €681.38 | |
 |
FKD 14 | Sealed Ball | 2156 | 2061 | 1965 | 1868 | 1764 | 1520 | 1193 | €873.75 | |
 |
FKD 14XL | Sealed Ball | 2619 | 2517 | 2416 | 2303 | 2180 | 1936 | 1662 | €1,314.46 | |
 |
FKD 16XL | Sealed Ball | 4274 | 4144 | 4014 | 3880 | 3743 | 3452 | 3137 | €2,019.60 |
