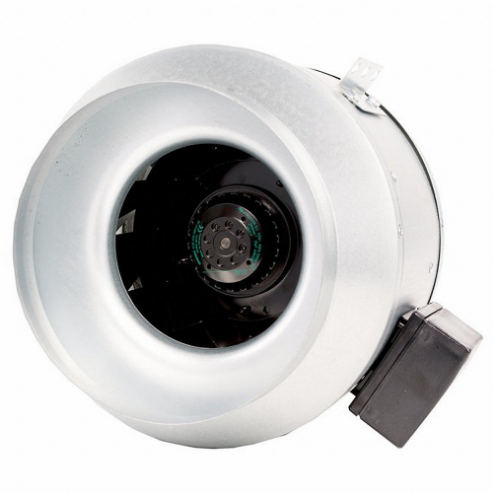

FANTECH FKD 10 Mixed Flow Fan, 10 Inch Duct With Metal Housing, 909 cfm, 120V
Get it by Tuesday, Jun 17
€784.10 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Mixed Flow Duct Fan |
| Airflow @ 0.000 In Sp | 910 CFM |
| Application | General Purpose |
| Bearing Type | Sealed Ball |
| Cfm @ 0.000-in. Sp | 910 CFM |
| Cfm @ 0.125-in. Sp | 873 CFM |
| Cfm @ 0.250-in. Sp | 836 CFM |
| Cfm @ 0.375-in. Sp | 795 CFM |
| Cfm @ 0.500-in. Sp | 752 CFM |
| Cfm @ 0.750-in. Sp | 653 CFM |
| Cfm @ 1.000-in. Sp | 547 CFM |
| Cfm @ 1.500-in. Sp | 342 CFM |
| Cfm @ Duct | 910 CFM |
| Duct Dia. | 10" |
| Fits Duct Dia. | 10" |
| Flange Width | 3/4" |
| For Fan Type | Centrifugal Duct Fan |
| High-efficiency Motor | No |
| Housing Dia. | 12 1/2" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | Mounting Brackets |
| Inlet And Outlet Dia. | 10" |
| Length | 15" |
| Max. Amps | 3.01A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 329 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Output Power | 305 W |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Overall Dia. | 12 1/2" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Duct Diameter | 10" |
| Maximum Inlet Air Temperature | 140°F |
| Motor Enclosure | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 120V AC |
| Overall Diameter | 12 1/2" |
| Overall Height | 15 1/2" |
| Overall Width | 12 1/2" |
| Speed Controllable | Yes |
| Standards | AMCA, CULUS |
| Ship weight (kg) | 8.14 |
| Ship height (cm) | 43.2 |
| Ship length (cm) | 43.2 |
| Ship width (cm) | 43.2 |
| HS code | 8414596560 |
| Country of Origin | DE |
| Product | Model | Bearing Type | Cfm @ 0.000-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.250-in. Sp | Cfm @ 0.375-in. Sp | Cfm @ 0.500-in. Sp | Cfm @ 0.750-in. Sp | Cfm @ 1.000-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FKD12XL | Ball | 2016 | 1920 | 1832 | 1746 | 1649 | 1423 | 1066 | €846.93 | |
 |
FKD 8XL | Sealed Ball | 836 | 799 | 761 | 720 | 680 | 595 | 499 | €694.21 | |
 |
FKD 10XL | Sealed Ball | 1266 | 1226 | 1187 | 1147 | 1100 | 1006 | 911 | €681.38 | |
 |
FKD 14 | Sealed Ball | 2156 | 2061 | 1965 | 1868 | 1764 | 1520 | 1193 | €873.75 | |
 |
FKD 14XL | Sealed Ball | 2619 | 2517 | 2416 | 2303 | 2180 | 1936 | 1662 | €1,314.46 | |
 |
FKD 16XL | Sealed Ball | 4274 | 4144 | 4014 | 3880 | 3743 | 3452 | 3137 | €2,019.60 | |
 |
FKD 18 | Sealed Ball | 4448 | 4992 | 4130 | 3991 | 3871 | 3583 | 3239 | €2,149.90 |
