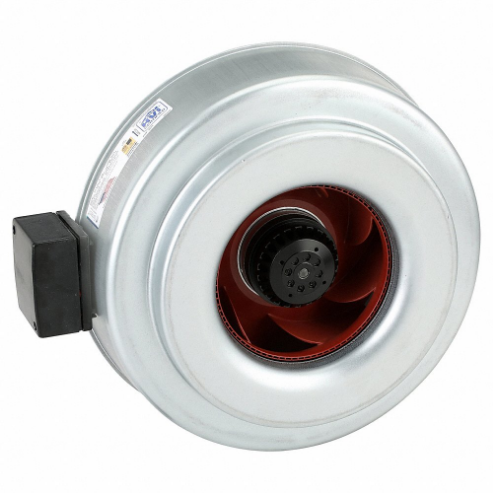

FANTECH FG12XL Centrifugal Inline Fan, 12 Inch Duct With Metal Housing, 120V
Get it by Monday, Jun 16
€491.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Centrifugal Inline Duct Fan |
| Airflow @ 0.000 In Sp | 940 CFM |
| Application | General Purpose |
| Bearing Type | Ball , Ball Bearing |
| Cfm @ 0.125-in. Sp | 903 CFM |
| Cfm @ 0.200-in. Sp | 880 CFM |
| Cfm @ 0.250-in. Sp | 865 CFM |
| Cfm @ 0.375-in. Sp | 834 CFM |
| Cfm @ 0.400-in. Sp | 819 CFM |
| Cfm @ 0.500-in. Sp | 783 CFM |
| Cfm @ 0.600-in. Sp | 746 CFM |
| Cfm @ 0.750-in. Sp | 689 CFM |
| Cfm @ 0.800-in. Sp | 670 CFM |
| Cfm @ 1.000-in. Sp | 596 CFM |
| Cfm @ 1.200-in. Sp | 505 CFM |
| Cfm @ 1.500-in. Sp | 425 CFM |
| Cfm @ Duct | 940 CFM |
| Duct Dia. | 12" |
| Fits Duct Dia. | 12" |
| For Fan Type | Centrifugal Duct Fan |
| Green Certification Or Other Recognition | Energy Star , Energy-Star.Png |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| High-efficiency Motor | No |
| Housing Dia. | 16" |
| Housing Finish | Baked Enamel |
| Housing Material | Galvanized Steel |
| Hp | 3/8 hp |
| Includes | Mounting Bracket |
| Inlet And Outlet Dia. | 11 7/8" |
| Length | 8 15/16" |
| Max. Amps | 3A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 326 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Output Power | 300 W |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Overall Dia. | 16" |
| Overall Height | 18" |
| Overall Width | 8 1/8" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Duct Diameter | 12" |
| Maximum Inlet Air Temperature | 140°F |
| Motor Enclosure | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 120V AC |
| Overall Diameter | 16" |
| Speed Controllable | Yes |
| Standards | CULUS |
| Ship weight (kg) | 7.58 |
| Ship height (cm) | 30.5 |
| Ship length (cm) | 53.3 |
| Ship width (cm) | 50.8 |
| HS code | 8414596560 |
| Country of Origin | DE |
| Product | Model | Cfm @ 0.000-in. Sp | Cfm @ 0.100-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.200-in. Sp | Cfm @ 0.250-in. Sp | Cfm @ 0.375-in. Sp | Cfm @ 0.500-in. Sp | Cfm @ 0.750-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FG 4XL | 170 | 160 | 157 | 150 | 146 | 135 | 126 | 90 | €187.01 | |
 |
FG 6M | 418 | 394 | 388 | 370 | 356 | 320 | 292 | 195 | €233.77 | |
 |
FG 6XL | 483 | 466 | 462 | 450 | 439 | 412 | 389 | 299 | €359.39 | |
 |
FG 8 | 461 | 435 | 429 | 410 | 395 | 355 | 323 | 204 | €270.56 | |
 |
FG 10 | 513 | 497 | 492 | 480 | 471 | 446 | 425 | 334 | €422.08 | |
 |
FG 12 | 741 | 711 | 703 | 680 | 660 | 606 | 558 | 380 | €606.96 | |
 |
FG 6M EC | 363 | - | 344 | 349 | 323 | 305 | 287 | 247 | €325.74 |
