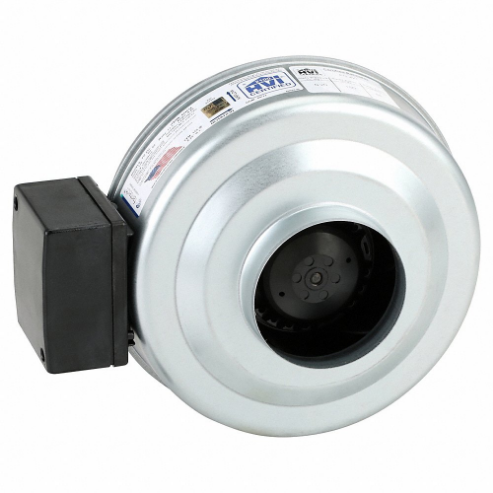

FANTECH FG 4XL Centrifugal Inline Fan, 4 Inch Duct With Metal Housing, 120V
Get it by Wednesday, Jun 18
€187.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Centrifugal Inline Duct Fan |
| Bearing Type | Ball |
| Cfm @ 0.000-in. Sp | 170 CFM |
| Cfm @ 0.100-in. Sp | 160 CFM |
| Cfm @ 0.125-in. Sp | 157 CFM |
| Cfm @ 0.200-in. Sp | 150 CFM |
| Cfm @ 0.250-in. Sp | 146 CFM |
| Cfm @ 0.375-in. Sp | 135 CFM |
| Cfm @ 0.400-in. Sp | 134 CFM |
| Cfm @ 0.450-in. Sp | 126 CFM |
| Cfm @ 0.500-in. Sp | 126 CFM |
| Cfm @ 0.600-in. Sp | 119 CFM |
| Cfm @ 0.750-in. Sp | 90 CFM |
| Cfm @ 0.800-in. Sp | 103 CFM |
| Cfm @ 1.000-in. Sp | 86 CFM |
| Cfm @ 1.500-in. Sp | 40 CFM |
| Cfm @ Duct | 170 CFM |
| Fits Duct Dia. | 4" |
| Green Certification Or Other Recognition | Energy-Star.Png |
| Height | 8 1/2" |
| Housing Dia. | 8 3/4" |
| Housing Material | Galvanized Steel |
| Inlet And Outlet Dia. | 4" |
| Length | 9 3/4" |
| Max. Amps | 0.66A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 71 W |
| Motor Enclosure Design | External Rotor |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Phase | 1 |
| Airflow @ 0.000 In Sp | 174 CFM |
| Application | General Purpose |
| Duct Diameter | 4" |
| High-efficiency Motor | No |
| Includes | Mounting Bracket |
| Maximum Inlet Air Temperature | 140°F |
| Motor Ip Rating | IP44 |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 120V AC |
| Overall Diameter | 9 3/4" |
| Overall Height | 11 3/4" |
| Overall Width | 8" |
| Speed Control Included | No |
| Speed Controllable | Yes |
| Standards | AMCA, CCSAUS, CULUS, HVI |
| Ship weight (kg) | 3.44 |
| Ship height (cm) | 30.5 |
| Ship length (cm) | 33 |
| Ship width (cm) | 33 |
| HS code | 8414596560 |
| Country of Origin | US |
| Product | Model | Cfm @ 0.000-in. Sp | Cfm @ 0.100-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.200-in. Sp | Cfm @ 0.250-in. Sp | Cfm @ 0.375-in. Sp | Cfm @ 0.500-in. Sp | Cfm @ 0.750-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FG 6M | 418 | 394 | 388 | 370 | 356 | 320 | 292 | 195 | €233.77 | |
 |
FG 6XL | 483 | 466 | 462 | 450 | 439 | 412 | 389 | 299 | €359.39 | |
 |
FG 8 | 461 | 435 | 429 | 410 | 395 | 355 | 323 | 204 | €270.56 | |
 |
FG 10 | 513 | 497 | 492 | 480 | 471 | 446 | 425 | 334 | €422.08 | |
 |
FG 12 | 741 | 711 | 703 | 680 | 660 | 606 | 558 | 380 | €606.96 | |
 |
FG 6M EC | 363 | - | 344 | 349 | 323 | 305 | 287 | 247 | €325.74 | |
 |
FG 8 EC | 428 | - | 405 | 410 | 380 | 357 | 334 | 285 | €370.20 |
