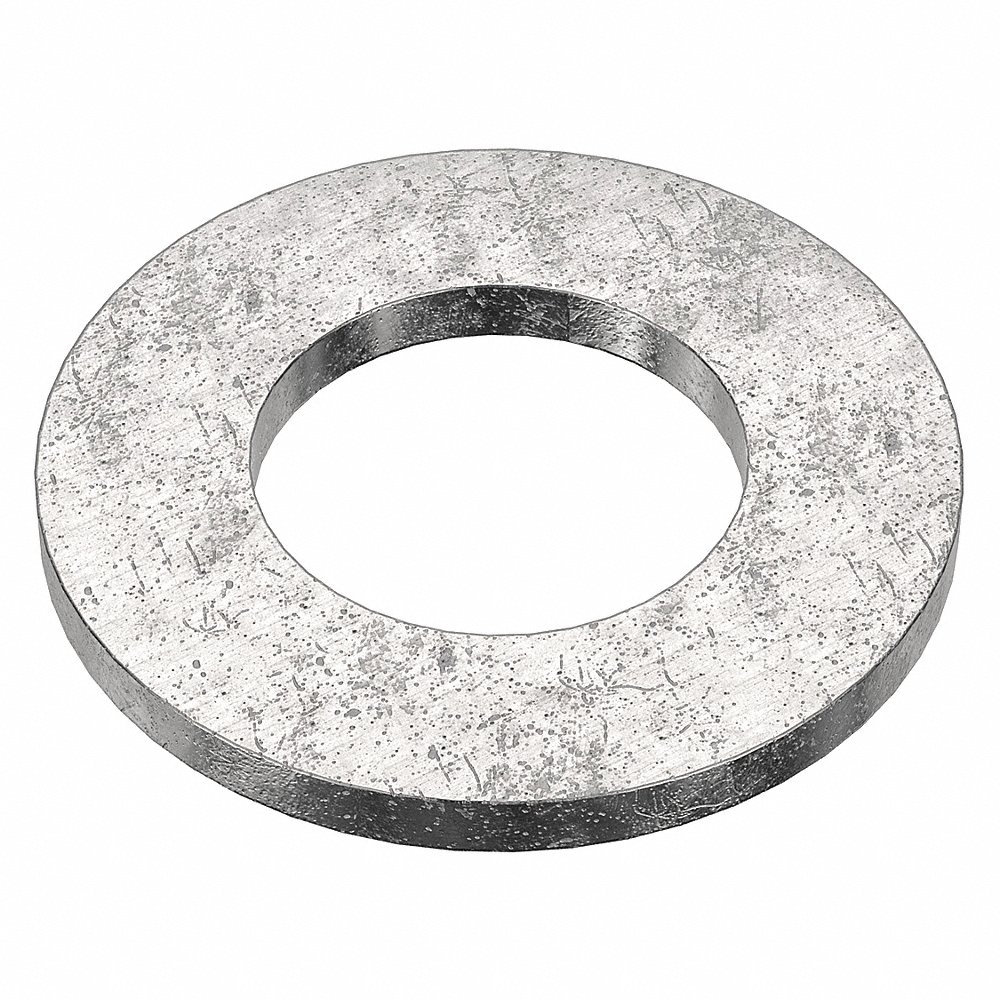

| Item | Flat Washer |
| Color | Silver |
| Finish | Plain |
| Fits Bolt Sizes | 7/8" |
| Grade | Grade 316 |
| Inside Dia. | 15/16" |
| Material | Stainless Steel |
| Outside Dia. | 1 3/4" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | Not Applicable |
| Thickness | 0.134" |
| Washer Type | SAE Washer |
| Dimensional Standards | ASME B18.21.1, SAE |
| Flat Washer Type | SAE |
| For Screw Size | 7/8" |
| Inside Diameter | 0.938" |
| Inside Diameter Tolerance | +0.030", -0.007" |
| Made In North America | No |
| Material Grade/class | 316 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 4/25" |
| Minimum Temperature | -58°F |
| Minimum Thickness | 0.108" |
| Outside Diameter | 1 3/4" |
| Outside Diameter Tolerance | +0.030", -0.007" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| Thickness Tolerance | +/-0.026" |
| Ship weight (kg) | 9.86 |
| Country of Origin | Varies |
