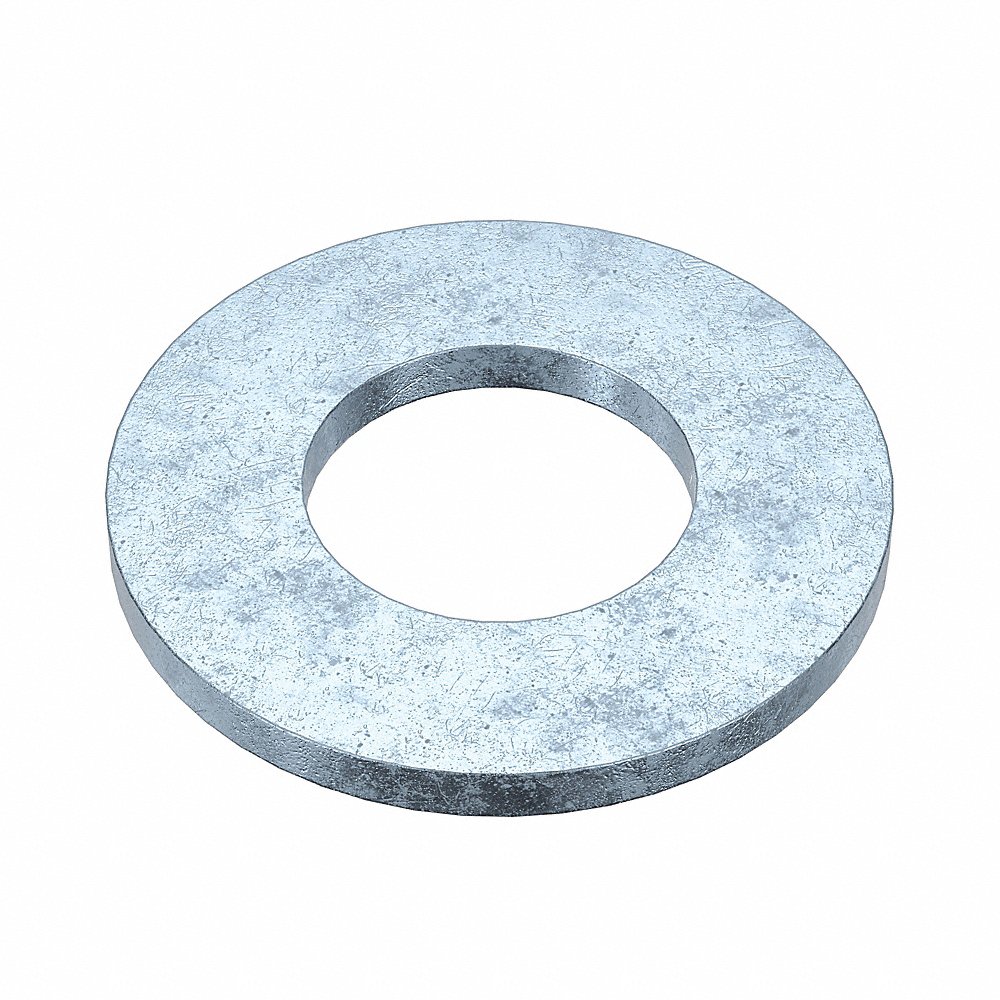

| Item | Flat Washer |
| Color | Silver |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 3/8" |
| Inside Dia. | 13/32" |
| Material | Steel |
| Outside Dia. | 13/16" |
| System Of Measurement | Imperial |
| Thickness | 1/16" |
| Washer Type | SAE Washer |
| Dimensional Standards | ASME B18.21.1, SAE |
| Flat Washer Type | SAE |
| For Screw Size | 3/8" |
| Inside Diameter | 0.406" |
| Inside Diameter Tolerance | 0.401" to 0.421" |
| Made In North America | No |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.063" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.063" |
| Outside Diameter | 13/16" |
| Outside Diameter Tolerance | 0.805" to 0.827" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140HV |
| Rohs Compliant | Yes |
| Thickness Tolerance | 0.051-0.08" |
| Ship weight (kg) | 9.87 |
| Country of Origin | Varies |
