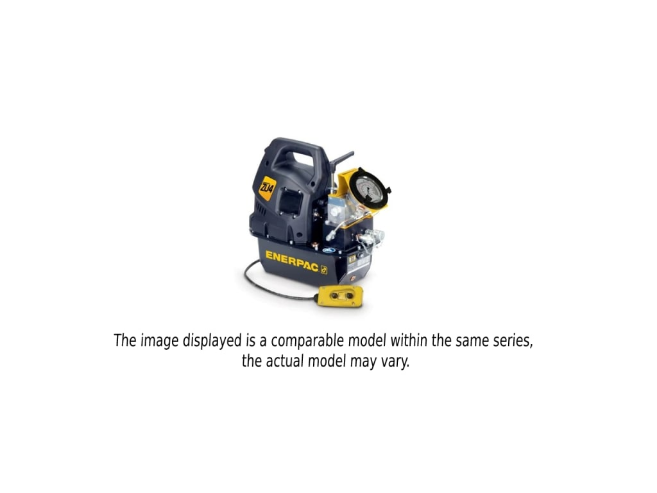

ENERPAC ZU4204BB-QH Pump, Electric Universal, Torque, Classic 115V, 4L
Get it by Tuesday, Jun 17
€10,263.33 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Electric Pump |
| Duty Cycle | Heavy-Duty |
| For Use With Torque Wrenches | For use with all Enerpac torque wrenches |
| Maximum Flow At Rated Pressure | 1,0 l/min |
| Maximum Flow At Rated Pressure | 60 in3/min |
| Maximum Operating Pressure (psi) | 10,000 |
| Motor Electrical Specification | 115 V, 1 Ph, 50/60 Hz |
| Motor Electrical Specification | 700 |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 1 Ph |
| Motor Size (hp) | 1.7 |
| Motor Voltage | 115 V |
| Output Flow Rate (in3/min) 100 Psi | 700 |
| Output Flow Rate (in3/min) 10000 Psi | 60 |
| Output Flow Rate (in3/min) 5000 Psi | 76 |
| Output Flow Rate (in3/min) 700 Psi | 535 |
| Output Flow Rate At 350 Bar (l/min) | 1,2 |
| Output Flow Rate At 50 Bar (l/min) | 8,8 |
| Output Flow Rate At 7 Bar (l/min) | 11,5 |
| Output Flow Rate At 700 Bar (l/min) | 1,0 |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Adjustment Range (bar) | 124 - 700 |
| Reservoir Capacity (cm3) | 4000 |
| Reservoir Capacity (in3) | 277 |
| Usable Oil Capacity (gal) | 1 |
| Usable Oil Capacity (litres) | 4,0 |
| Valve Operation | Solenoid |
| Valve Type | 4-way, 2-position |
| Ship weight (kg) | 51.59 |
| Ship height (cm) | 52.07 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 33.25 |
| Country of Origin | US |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Pump Control | Solenoid Valve Voltage | Valve Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €5,929.11 | |
 |
ZU4308LB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €6,478.56 | |
 |
ZU4104DB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | 24V | Advance/ Retract | €6,574.59 | |
|
ZU4108DB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Pendant | 24V | Advance/ Retract | €6,807.24 | |
|
ZU4120DB | Single Acting | 18.3" | 7.1" | 16.5" | 16.6" | Pendant | 24V | Advance/ Retract | €7,312.14 | |
 |
ZU4204JB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | - | Advance/ Retract | €5,187.60 | |
|
ZU4204MB | Single Acting | - | - | - | - | Manual | - | - | €4,843.08 |
