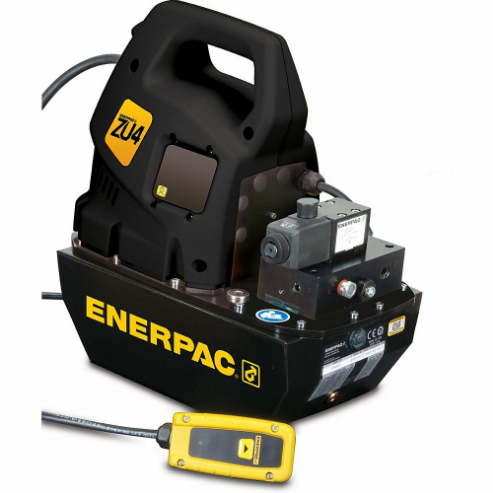

ENERPAC ZU4108DB Electric Hydraulic Pump, Pro, 3/2 Solenoid Dump Valve, 115V, 2 Gallon Usable Oil
Get it by Tuesday, Jun 17
€6,807.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Electric Pump |
| Amps Ac | 22A |
| Application | Dump |
| Control Pendant Voltage | 24V DC |
| Control Valve Function | Advance, Retract |
| Cylinder Compatibility | Single Acting |
| Dimension A | 16.7" |
| Dimension B | 5 3/5" |
| Dimension C | 11" |
| Duty Cycle | Intermittent |
| Fluid Port Npt | 3/8" |
| Hp | 1 7/10 hp |
| Max. Operating Pressure | 10000 psi |
| Motor Type | Universal |
| Oil Displacement @ 0-200 Psi | 675 cu. in./min. |
| Oil Displacement @ 1000 Psi | 500 cu. in./min. |
| Oil Displacement @ 700 Psi | 535 cu. in./min. |
| Overall Height | 16.7" |
| Overall Length | 25" |
| Phase | 1 |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 2000 psi to 10000 psi |
| Reservoir Material | Steel |
| Solenoid Valve Voltage | 24V |
| Sound Level | 85 dBA to 90 dBA |
| Type | Electric |
| Valve Operation | Solenoid |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Valve Pressure Relief (minimum) | 2000 psi |
| Control Valve Type | 2-Position, 3-Way |
| Current | 22A |
| Displacement @ 10,000 Psi | 60 cu. in./min. |
| Displacement @ 100 Psi | 700 cu. in./min. |
| Displacement @ 1000 Psi | 500 cu. in./min. |
| Displacement @ 200 Psi | 675 cu. in./min. |
| Displacement @ 5000 Psi | 76 cu. in./min. |
| Displacement @ 700 Psi | 535 cu. in./min. |
| Frequency | 50/60 Hz |
| Includes | LCD Display |
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 60 cu. in./min. |
| Max. Horsepower | 1 7/10 hp |
| Max. Sound Level | 90 dBA |
| Media Intake Connection Size | 1/2" |
| Media Intake Connection Type | NPTF |
| Nameplate Voltage | 115V AC |
| Overall Width | 12 1/2" |
| Reservoir Capacity | 416 cu. in. |
| Sound Level (minimum) | 85 dBA |
| Ship weight (kg) | 35.88 |
| Ship height (cm) | 51.18 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 30.58 |
| HS code | 8413500050 |
| Country of Origin | US |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Pump Control | Solenoid Valve Voltage | Valve Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €5,929.11 | |
 |
ZU4308LB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €6,478.56 | |
|
ZU4104DB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | 24V | Advance/ Retract | €6,574.59 | |
|
ZU4120DB | Single Acting | 18.3" | 7.1" | 16.5" | 16.6" | Pendant | 24V | Advance/ Retract | €7,312.14 | |
 |
ZU4204JB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | - | Advance/ Retract | €5,187.60 | |
|
ZU4204MB | Single Acting | - | - | - | - | Manual | - | - | €4,843.08 | |
 |
ZU4204SB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | 24V DC | Advance/ Hold/ Retract | €6,669.63 |
