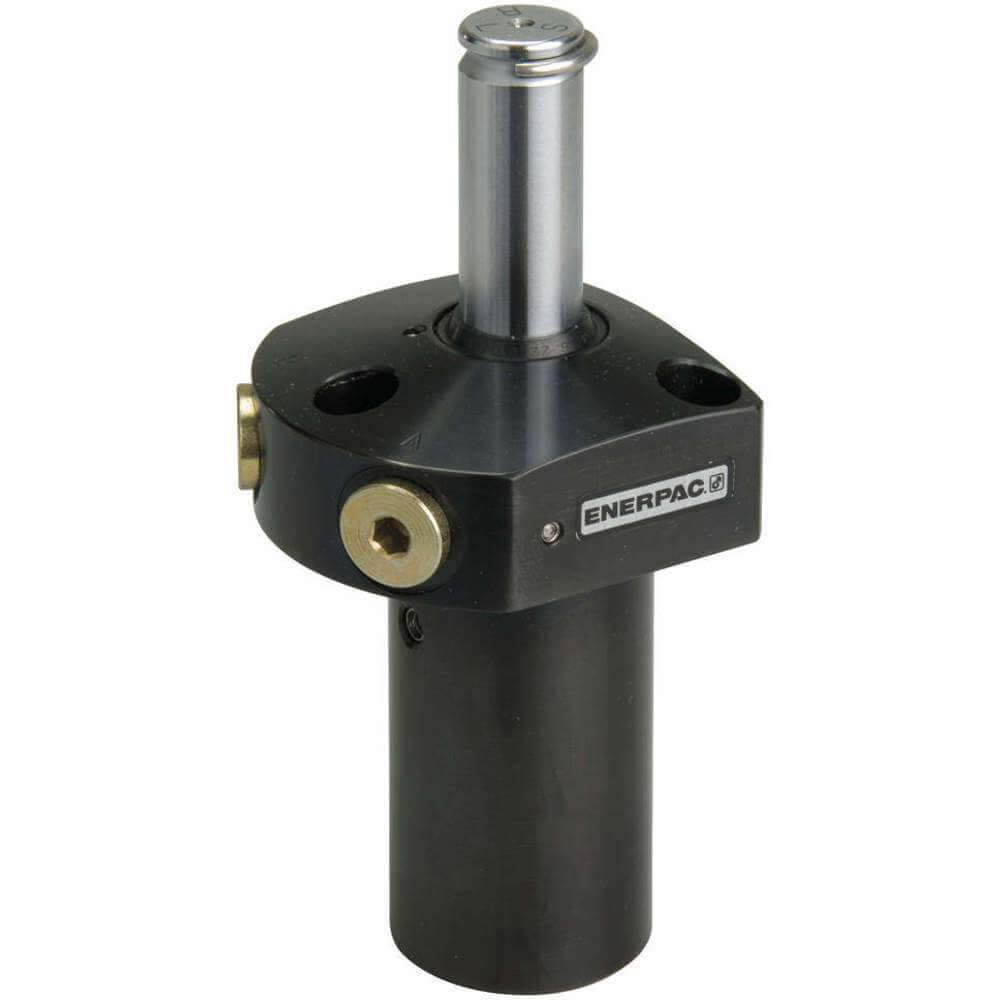

ENERPAC SURD51 Swing Clamp, 1250 lbs Force, Double-Acting, Right Turning, Upper Flange
Get it by Wednesday, Jun 18
€677.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Clamp Arm |
| Body Material | Steel |
| Body Style | Upper Flange |
| Clamping Force | 1250 lbs. |
| Clamping Stroke | 0.39" |
| Cylinder Return Type | Double Acting |
| Cylinder Type | Swing |
| Dimension A | 5.33" |
| Dimension B | 2.73" |
| Dimension C | 1 2/25" |
| Dimension C1 | 1.97" |
| Dimension D | 1.37" |
| Dimension D1 | 2.13" |
| Dimension D2 | 2 1/4" |
| Dimension F | 0.63" |
| Dimension G | #4 |
| Dimension K | 19/25" |
| Dimension N | 3/4" |
| Dimension P | 1.58" |
| Dimension S | 1.614" |
| Dimension T | 1.89" |
| Dimension U | 1.97" |
| Dimension V | 0.268" |
| Dimension W | 2 3/5" |
| Dimension X | 0.565" |
| Extended Height | 5.31" |
| Function | Double Acting |
| Material | Steel |
| Material Of Construction | Steel |
| Max. Oil Flow | 25 cu. in./min. |
| Max. Operating Pressure | 5000 psi |
| Min. Hole Depth | 3/4" |
| Min. Operating Pressure | 500 psi |
| Mounting Hole Dia. | 0.268" |
| Mounting Style | Upper Flange |
| Mounting Thread Size | 1/4"-28 |
| Mounting Thread Type | Coarse |
| Mounting Type | Upper Flange |
| Number Of Bolts | 3 |
| Outside Dia. | 1.37" |
| Pressure Range | 500 psi to 5000 psi |
| Pressure Rating | 500 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Rotation | Right |
| Single Acting/double Acting | Double Acting |
| Stroke | 0.89" |
| Total Stroke | 0.89" |
| Turns | Right |
| Type | Swing |
| Bolt Size | 1/4"-28 |
| Effective Area Clamped | 0.28 sq. in. |
| Effective Area Unclamped | 0.59 sq. in. |
| Includes | Mounting Bolts and Arm C-Clip |
| Max. Pressure | 5000 psi |
| Oil Capacity Clamped | 0.25 cu. in. |
| Oil Capacity Unclamped | 0.52 cu. in. |
| Port Size | #4 SAE |
| Series | SU Series |
| Swing Angle | 90° |
| Ship weight (kg) | 1.03 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 24.64 |
| Ship width (cm) | 9.65 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Clamping Force | Clamping Stroke | Cylinder Effective Area Clamp | Cylinder Effective Area Unclamp | Cylinder Return Type | Dimension A | Dimension B | Dimension C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SURS21 | 475 lbs. | 0.32" | 0.12 sq. in. | - | Single Acting | 4.41" | 2.32" | 1.05" | €618.75 | |
 |
SURS51 | 1100 lbs. | 0.39" | 0.28 sq. in. | - | Single Acting | 5.33" | 2.73" | 1.08" | €677.16 | |
 |
SURS121 | 2400 lbs. | 0.5" | 0.63 sq. in. | - | Single Acting | 6.75" | 3.37" | 1.08" | €772.20 | |
|
SULS21 | 475 lbs. | 0.32" | 0.12 sq. in. | - | Single Acting | 4.41" | 2.32" | 1.05" | €618.75 | |
|
SULS51 | 1100 lbs. | 0.39" | 0.28 sq. in. | - | Single Acting | 5.33" | 2.73" | 1.08" | €677.16 | |
|
SULS121 | 2400 lbs. | 0.5" | 0.63 sq. in. | - | Single Acting | 6.75" | 3.37" | 1.08" | €772.20 | |
 |
SURD21 | 500 lbs. | 0.32" | 0.12 sq. in. | 0.24 sq. in. | Double Acting | 4.41" | 2.32" | 1.05" | €618.75 |
