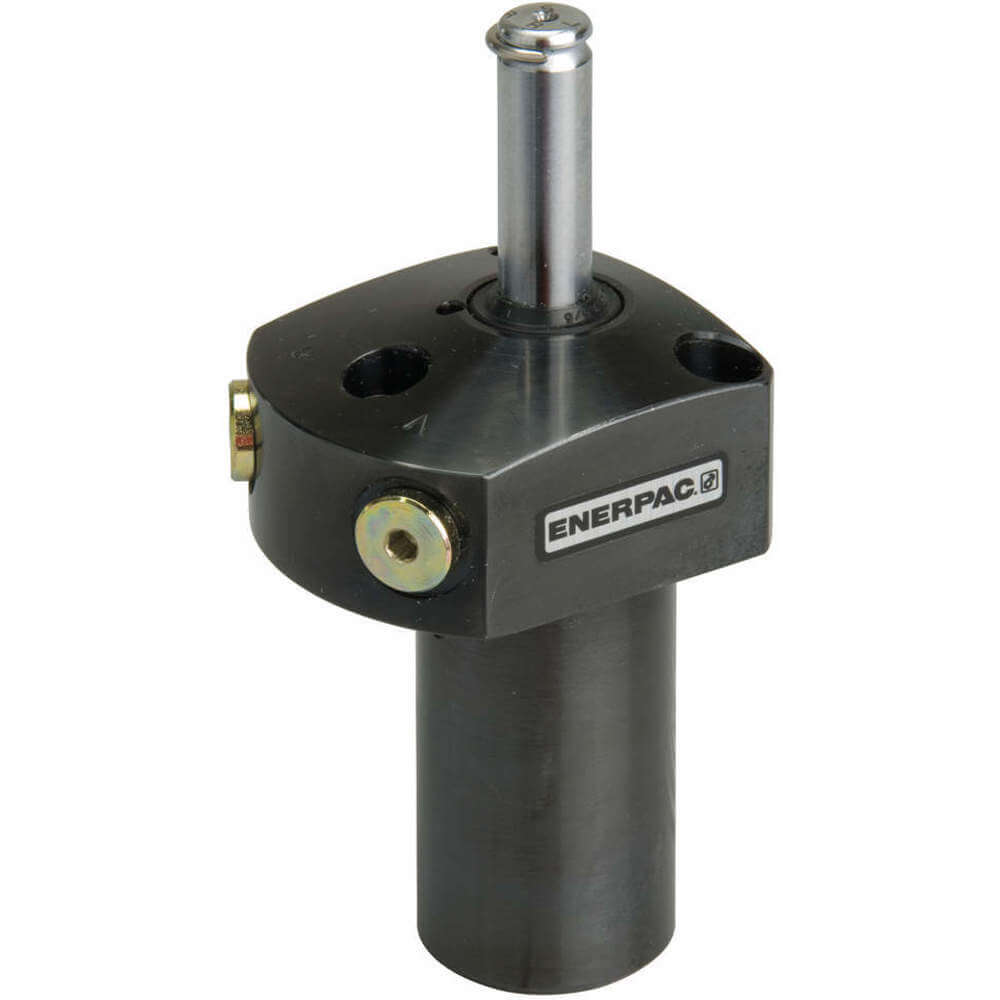

ENERPAC SURD21 Swing Clamp, 500 lbs Force, Double-Acting, Right Turning, Upper Flange | AE6TDN 5UWX8

ENERPAC SURD21 Swing Clamp, 500 lbs Force, Double-Acting, Right Turning, Upper Flange

In Stock
Item: AE6TDN Model: SURD21Cross Ref: 5UWX8
Check Availability
See variants (12)

Get it by Jun 5, Wednesday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€1,116.60 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemClamp Arm
Clamping Force500 lbs.
Clamping Stroke0.32"
Cylinder Effective Area Clamp0.12 sq. in.
Cylinder Effective Area Unclamp0.24 sq. in.
Cylinder Return TypeDouble Acting
Dimension A4.41"
Dimension B2.32"
Dimension C1.05"
Dimension C11.69"
Dimension D1.1"
Dimension D11.86"
Dimension D21.77"
Dimension F0.39"
Dimension GSAE #2
Dimension H0.43"
Dimension K0.63"
Dimension N0.61"
Dimension P0.97"
Dimension Q1/4"-20 UNC
Dimension S0.825"
Dimension T1.22"
Dimension U1.58"
Dimension V0.225"
Dimension W2.09"
Dimension X0.714"
MaterialSteel
Max. Oil Flow12 cu. in./min.
Max. Operating Pressure5000 psi
Min. Operating Pressure500 psi
Mounting Thread Size#10-32
Mounting Thread TypeCoarse
Mounting TypeUpper Flange
Number of Bolts3
Oil Capacity Clamped0.08 cu. in.
Oil Capacity Unclamped0.16 cu. in.
RotationRight
Stroke0.65"
Swing Angle30 Deg., 60 Deg.

Shipping Info:

Ship weight (kg) 0.68
Ship height (cm)9.4
Ship length (cm)11.43
Ship width (cm)12.19
HS code8412210030
Country of OriginUS

Product Details:

  • Effective Area Unclamped (0.24 sq. in.)
  • Swing Angle (90 Degrees)

Product Variants

ProductModelDimension FDimension CClamping ForceCylinder Effective Area ClampCylinder Effective Area UnclampCylinder Return TypeDimension ADimension BPrice
ENERPAC SURS21 Swing Clamp, 475 lbs Force, Single-Acting, Right Turning, Upper Flange | AE6TDG 5UWX2 SURS210.39"1.05"475 lbs.0.12 sq. in.-Single Acting4.41"2.32"€1,189.48
ENERPAC SURS51 Swing Clamp, 1100 lbs Force, Single-Acting, Right Turning, Upper Flange | AE6TDH 5UWX3 SURS510.63"1.08"1100 lbs.0.28 sq. in.-Single Acting5.33"2.73"€944.15
ENERPAC SURS121 Swing Clamp, 2400 lbs Force, Single-Acting, Right Turning, Upper Flange | AE6TDJ 5UWX4 SURS1210.87"1.08"2400 lbs.0.63 sq. in.-Single Acting6.75"3.37"€1,345.51
ENERPAC SULS21 Swing Clamp, 475 lbs Force, Single-Acting, Left Turning, Upper Flange | AE6TDK 5UWX5 SULS210.39"1.05"475 lbs.0.12 sq. in.-Single Acting4.41"2.32"€1,052.51
ENERPAC SULS51 Swing Clamp, 1100 lbs Force, Single-Acting, Left Turning, Upper Flange | AE6TDL 5UWX6 SULS510.63"1.08"1100 lbs.0.28 sq. in.-Single Acting5.33"2.73"€1,028.90
ENERPAC SULS121 Swing Clamp, 2400 lbs Force, Single-Acting, Left Turning, Upper Flange | AE6TDM 5UWX7 SULS1210.87"1.08"2400 lbs.0.63 sq. in.-Single Acting6.75"3.37"€1,175.75
ENERPAC SURD51 Swing Clamp, 1250 lbs Force, Double-Acting, Right Turning, Upper Flange | AE6TDP 5UWX9 SURD510.63"1.08"1250 lbs.0.28 sq. in.0.59 sq. in.Double Acting5.33"2.73"€1,079.90
