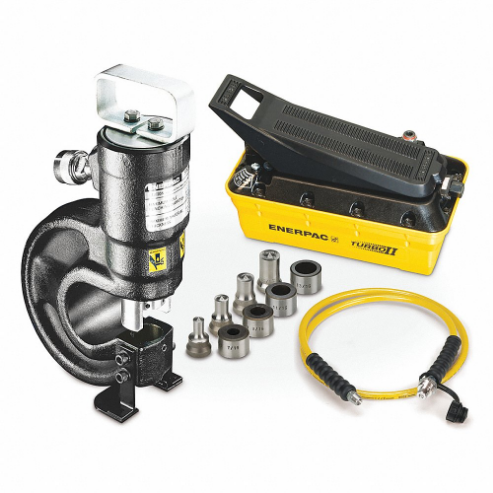

ENERPAC STP35A Hydraulic Punch and Standard Die Set with Air Pump, 35 Ton
Get it by Monday, Jun 16
€7,788.33 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Punch Set |
| Application | Punch |
| Cylinder Return Type | Single-Acting, Spring Return |
| Hole Shape | Circle |
| Max. Operating Pressure | 10000 psi |
| Power Source | Air Pump |
| Pump Power Source | Air Pump |
| Width | 3.85" |
| Boilerplate | 0.44", 0.5" |
| Bolt Size (in.) | 3/8", 1/2", 5/8", 3/4" |
| Capacity (tons) | 35 ton. |
| Characteristics | Single-Acting |
| Cold Rolled C-1018 | 0.38, 0.5 |
| Cylinder | Spring Return |
| Hole Size (in.) | 0.31 to 0.81" |
| Hot Rolled C-1050 | 0.31, 0.4, 0.44 |
| Hot Rolled C-1095 | 0.19, 0.25 |
| Hot Rolled C-1095 Annealed | 0.31, 0.38 |
| Includes | CR400 Coupler |
| Mild A-7 | 0.5 |
| Stainless 302 Annealed | 0.31, 0.4, 0.44 |
| Stainless 304 Hot Rolled | 0.31, 0.4, 0.44 |
| Stainless 316 Cold Rolled | 0.31, 0.4, 0.44 |
| Standard Bolt Size (in.) | 3/8", 1/2", 5/8", 3/4" |
| Standard Hole Size (in.) | 0.31" to 0.81" |
| Struct Corten Astm A242 | 0.38, 0.44 |
| Structural A-36 | 0.38, 0.5 |
| Working Pressure (psi) | 10000 psi |
| Ship weight (kg) | 36 |
| Ship height (cm) | 33.07 |
| Ship length (cm) | 66.29 |
| Ship width (cm) | 38.25 |
| Country of Origin | CN |
| Product | Model | Power Source | Price | |
|---|---|---|---|---|
 |
STP35H | Hand Pump | €7,345.80 |
