ENERPAC

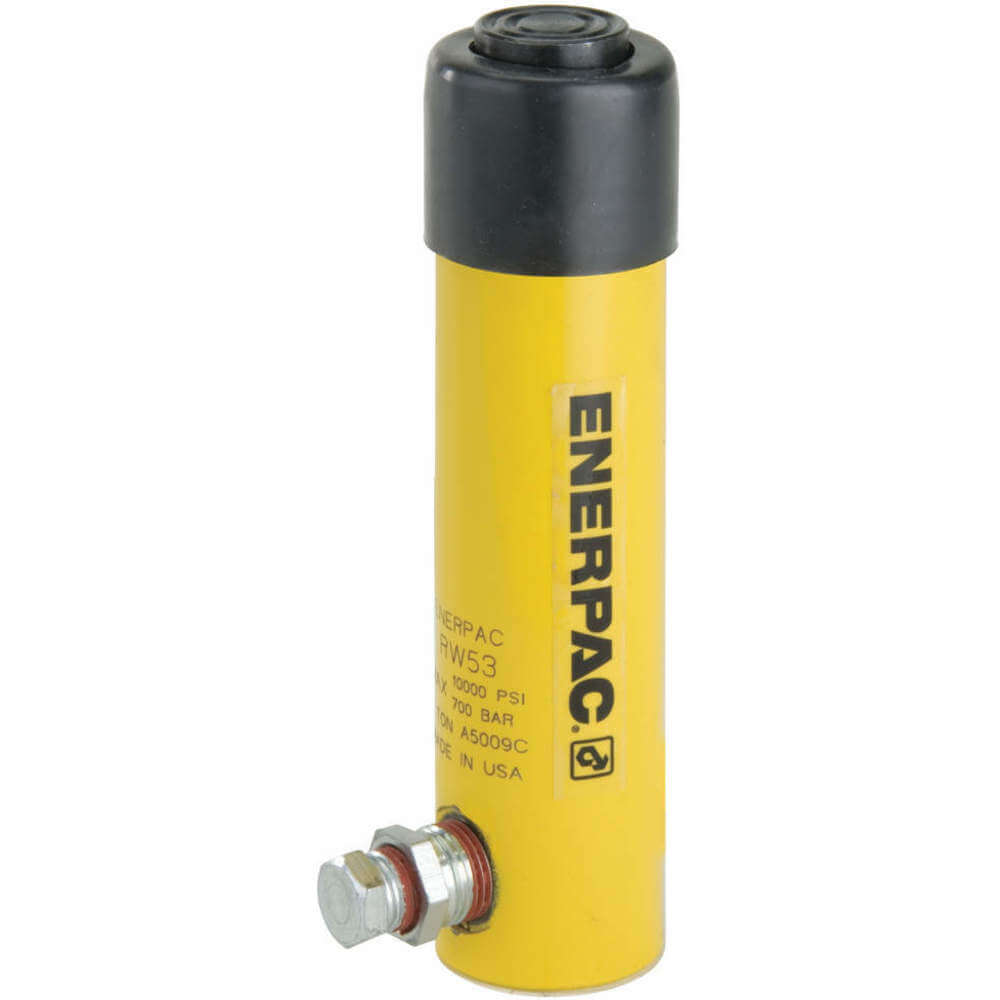

ENERPAC RW53 Hydraulic Cylinder, 4970 lbs Capacity, 3.17 Inch Stroke Length | AE6TFT 5UXA3

ENERPAC RW53 Hydraulic Cylinder, 4970 lbs Capacity, 3.17 Inch Stroke Length

In Stock
Item: AE6TFT Model: RW53Cross Ref: 5UXA3
Check Availability
See variants (7)

Get it by May 16, Thursday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€662.93 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHydraulic Cylinder
Cylinder Capacity Advance at 5000 psi4970 lbs.
Cylinder Effective Area Advance0.99 sq. in.
Cylinder Return TypeSingle-Acting, Spring Return
Dimension A9.73"
Dimension B6.56"
Dimension C6.25"
Dimension D1.5"
Dimension D11 1/5"-16 UN
Dimension F1"
Dimension G1/4"-18
Dimension H0.75"
Dimension J1"
Dimension K3/4"-16 UNF
Dimension L1.18"
Dimension T0.61"
Dimension U1"
Dimension V1/4"-20 UNC
Dimension Z0.55"
MaterialSteel
Max. Operating Pressure10000 psi
Min. Operating Pressure600 psi
Oil Capacity Advance2.97 cu. in.
Plunger TypeSolid
Stroke3.17"

Shipping Info:

Ship weight (kg) 1.35
Ship height (cm)9.14
Ship length (cm)23.88
Ship width (cm)9.4
HS code8431100090
Country of OriginUS

Product Details:

  • Unidirectional movement with a load capacity of 4970 lb at 5000 PSI
  • Features long stroke lengths with a compact design and high-pressure load capacity when additional force is needed
  • Equipped with hardened saddles providing additional plunger protection and snap-in mechanism making it compatible with multiple plungers
  • Integrated with collar mounting threads and base mounting holes for easy installation and flexible mounting in compact spaces
  • Suitable for automobile, aerospace, production, machinery and work-holding operations

Product Variants

ProductModelDimension FCylinder Capacity Advance at 5000 psiCylinder Effective Area AdvanceDimension GDimension JDimension TDimension UDimension VPrice
ENERPAC RW101 Hydraulic Cylinder, 11180 lbs Capacity, 0.99 Inch Stroke Length | AE6TEK 5UWZ8 RW1011.5"11180 lbs.2.23 sq. in.1/4"-18-0.24"1.56"1/3"-18 UNC€679.52
ENERPAC RW104 Hydraulic Cylinder, 11180 lbs Capacity, 4.18 Inch Stroke Length | AE6TEL 5UWZ9 RW1041.5"11180 lbs.2.23 sq. in.1/4"-181.38"0.68"1.56"1/3"-18 UNC€786.73
ENERPAC RW106 Hydraulic Cylinder, 11180 lbs Capacity, 6.11 Inch Stroke Length | AE6TFP 5UXA0 RW1061.5"11180 lbs.2.23 sq. in.1/4"-181.38"0.68"1.56"1/3"-18 UNC€882.24
ENERPAC RW50 Hydraulic Cylinder, 4970 lbs Capacity, 0.62 Inch Stroke Length | AE6TFQ 5UXA1 RW501"4970 lbs.0.99 sq. in.3/8"-18--1.12"0.22"€571.37
ENERPAC RW51 Hydraulic Cylinder, 4970 lbs Capacity, 1.01 Inch Stroke Length | AE6TFR 5UXA2 RW511"4970 lbs.0.99 sq. in.1/4"-181"0.61"1"1/4"-20 UNC€583.59
ENERPAC RW55 Hydraulic Cylinder, 4970 lbs Capacity, 5.17 Inch Stroke Length | AE6TFU 5UXA4 RW551"4970 lbs.0.99 sq. in.1/4"-181"0.61"1"1/4"-20 UNC€631.89
ENERPAC RW102 Hydraulic Cylinder, 11180 lbs Capacity, 2.18 Inch Stroke Length | AF7YLG 23NP44 RW1021.5"11180 lbs.2.23 sq. in.1/4"-181.38"0.68"1.56"1/3"-18 UNC€868.81
