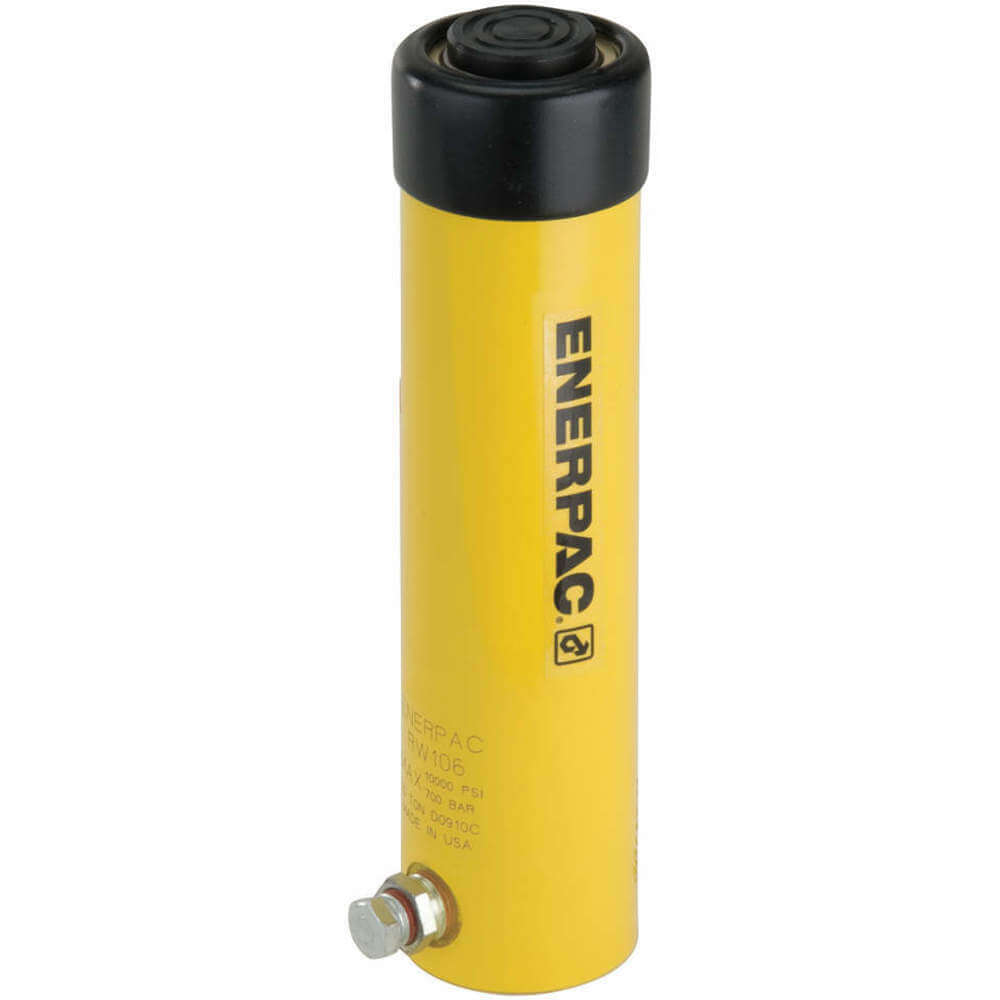

ENERPAC RW106 Hydraulic Cylinder, 11180 lbs Capacity, 6.11 Inch Stroke Length
Get it by Monday, Jun 16
€634.59 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Bolt Circle Dia. | 1 14/25" |
| Cylinder Capacity Advance At 5000 Psi | 11180 lbs. |
| Cylinder Type | General Purpose , Universal |
| Dimension A | 15.82" |
| Dimension B | 9.71" |
| Dimension C | 9 1/2" |
| Dimension D | 2 1/4" |
| Dimension F | 1 1/2" |
| Dimension H | 3/4" |
| Dimension J | 1.38" |
| Dimension L | 1.15" |
| Dimension T | 17/25" |
| Dimension U | 1 14/25" |
| Dimension Z | 0.49" |
| Handle | No |
| Includes | Saddle |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Min. Operating Pressure | 600 psi |
| Nominal Stroke Length | 6" |
| Oil Capacity | 13.67 cu. in. |
| Outside Dia. | 2 1/4" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 6.11" |
| Thread Size | 5/16"-18 |
| Weighing Capacity | 10 ton. |
| Base Bolt Circle Dia. | 1.56" |
| Center Hole Dia. | 1 1/2" |
| Collar Thread Size | 2 1/4"-14 |
| Effective Push Area | 2.23 sq. in. |
| Extended Height | 15.88" |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 10 ton. |
| Nominal Capacity | 10 ton. |
| Oil Capacity Push | 13.67 cu. in. |
| Plunger Dia. | 1 1/2" |
| Plunger Thread Size | 1"-8 |
| Retracted Height | 9.75" |
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 16.51 |
| HS code | 8431100090 |
| Country of Origin | CN |
| Product | Model | Cylinder Capacity Advance At 5000 Psi | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension C | Dimension D | Dimension D1 | Dimension F | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RW101 | 11180 lbs. | 2.23 sq. in. | 4.53" | 3.54" | 3.41" | 2.25" | 2 1/4"-14 UNS | 1.5" | €494.01 | |
 |
RW104 | 11180 lbs. | 2.23 sq. in. | 10.97" | 6.79" | 6.53" | 2.25" | 2 1/4"-14 UNS | 1.5" | €567.27 | |
 |
RW50 | 4970 lbs. | 0.99 sq. in. | 2.24" | 1.62" | - | 1.62" | 2.32" | 1" | €408.87 | |
 |
RW51 | 4970 lbs. | 0.99 sq. in. | 5.42" | 4.41" | 4.09" | 1.5" | 1 1/5"-16 UN | 1" | €428.67 | |
 |
RW53 | 4970 lbs. | 0.99 sq. in. | 9.73" | 6.56" | 6.25" | 1.5" | 1 1/5"-16 UN | 1" | €457.38 | |
 |
RW55 | 4970 lbs. | 0.99 sq. in. | 13.74" | 8.57" | 8.25" | 1.5" | 1 1/5"-16 UN | 1" | €468.27 | |
 |
RW102 | 11180 lbs. | 2.23 sq. in. | 6.97" | 4.79" | 4.53" | 2.25" | 2 1/4"-14 UNS | 1.5" | €508.86 |
