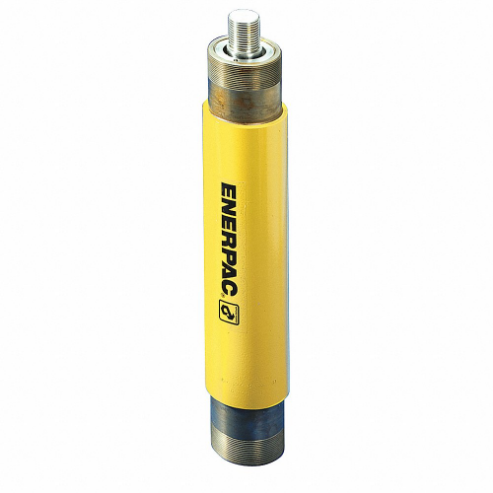

ENERPAC RD93 General Purpose Hydraulic Cylinder, 9 Ton, Capacity, 3.13 Inch Stroke Length, Double-Acting
Get it by Monday, Jun 16
€1,642.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Base To Advance Port | 2.27" |
| Body Material | Steel |
| Clevis Eye Mounting Dimension Length | 13.66" |
| Clevis Eye Mounting Dimension M | 1 1/2" |
| Clevis Eye Mounting Dimension Overall Length | 16.79" |
| Collapsed Height | 10.78" |
| Collar Thread Length | 14/25" |
| Cylinder Bore | 1 1/2" |
| Cylinder Capacity Advance At 5000 Psi | 9000 lbs. |
| Cylinder Capacity Retract At 5000 Psi | 4910 lbs. |
| Cylinder Type | High Cycle , Universal |
| Extended Height | 13.91" |
| Finish | Paint |
| Handle | No |
| Internal Base Thread Length | 0.55" |
| Internal Base Thread Size | 1 11/16"-18 |
| Length | 9 4/5" |
| Link Width | 1 1/2" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 5.52 cu. in. |
| Outside Dia. | 2 1/2" |
| Plunger Dia. | 1" |
| Plunger Outside Thread Size | 3/4"-16 |
| Plunger Thread Length | 3/4" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 3 1/8" |
| Top To Retract Port | 2.27" |
| Weighing Capacity | 9 ton. |
| Ship weight (kg) | 4.8 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 7.32 |
| HS code | 8412210030 |
| Country of Origin | CN |
| Model | Base To Advance Port | Capacity | Clevis Eye Mounting Dimension Length | Clevis Eye Mounting Dimension M | Clevis Eye Mounting Dimension Overall Length | Collar Thread Length | Cylinder Bore | Cylinder Capacity Advance At 5000 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RD1610 | 2.9" | 16 ton. | 23.32" | 2.05" | 33.57" | 0.88" | 2" | 15500 lbs. | €2,903.67 | |
| RD166 | 2.9" | 16 ton. | 19.32" | 2.05" | 25.57" | 0.88" | 2" | 15500 lbs. | €2,578.95 | |
| RD2510 | 3.5" | 25 ton. | 24.86" | 2.09" | 35.11" | 1.13" | 2.5" | 24500 lbs. | €4,713.39 | |
| RD256 | 3.5" | 25 ton. | 20.86" | 2.09" | 27.11" | 1.13" | 2.5" | 24500 lbs. | €3,652.11 | |
| RD41 | 1.88" | 4 ton. | 10.12" | 1.61" | 11.25" | 0.44" | 1" | 3900 lbs. | €1,058.31 | |
| RD43 | 1.88" | 4 ton. | 12.12" | 1.61" | 15.25" | 0.44" | 1" | 3900 lbs. | €2,019.60 | |
| RD46 | 1.88" | 4 ton. | 15.12" | 1.61" | 21.25" | 0.44" | 1" | 3900 lbs. | €1,302.84 |
