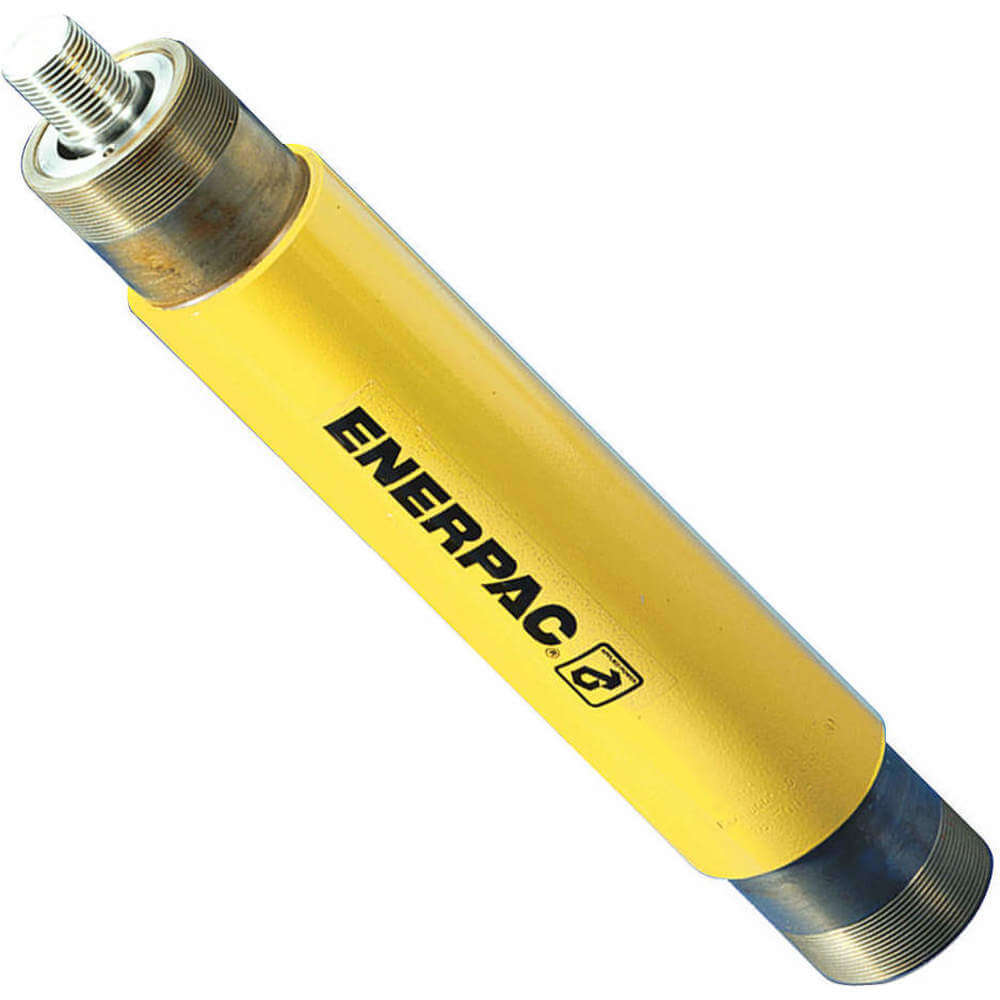

ENERPAC RD1610 General Purpose Hydraulic Cylinder, 16 Ton, Capacity, 10.25 Inch Stroke Length
Get it by Tuesday, Jun 17
€2,903.67 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Clevis Eye Mounting Dimension Length | 23 8/25" |
| Clevis Eye Mounting Dimension M | 2.05" |
| Clevis Eye Mounting Dimension Overall Length | 33.57" |
| Collapsed Height | 19.31" |
| Collar Thread Length | 22/25" |
| Collar Thread Size | 2 5/8"-16 |
| Cylinder Bore | 2" |
| Cylinder Capacity Advance At 5000 Psi | 15500 lbs. |
| Cylinder Capacity Retract At 5000 Psi | 8300 lbs. |
| Cylinder Type | High Cycle , Universal |
| Extended Height | 29 14/25" |
| Finish | Paint |
| Handle | No |
| Internal Base Thread Length | 0.94" |
| Internal Base Thread Size | 2 3/16"-16 |
| Length | 18.11" |
| Link Width | 2.13" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Nominal Stroke Length | 10" |
| Oil Capacity | 32.2 cu. in. |
| Outside Dia. | 3" |
| Plunger Dia. | 1.38" |
| Plunger Outside Thread Size | 1 1/8"-12 |
| Plunger Thread Length | 1" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 19.31" |
| Saddle Protrusion From Plunger | 1.19" |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 10 1/4" |
| Top To Retract Port | 2.9" |
| Weighing Capacity | 16 ton. |
| Center Hole Diameter | 1 1/8" |
| Effective Push Area | 3.14 sq. in. |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 16 ton. |
| Nominal Capacity | 15 ton. |
| Oil Capacity Push | 32.2 cu. in. |
| Plunger Thread Size | 1 1/2" 12 |
| Ship weight (kg) | 12.87 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 19.05 |
| HS code | 8412210030 |
| Country of Origin | CN |
| Model | Base To Advance Port | Capacity | Clevis Eye Mounting Dimension Length | Clevis Eye Mounting Dimension M | Clevis Eye Mounting Dimension Overall Length | Collar Thread Length | Cylinder Bore | Cylinder Capacity Advance At 5000 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RD166 | 2.9" | 16 ton. | 19.32" | 2.05" | 25.57" | 0.88" | 2" | 15500 lbs. | €2,578.95 | |
| RD2510 | 3.5" | 25 ton. | 24.86" | 2.09" | 35.11" | 1.13" | 2.5" | 24500 lbs. | €4,713.39 | |
| RD256 | 3.5" | 25 ton. | 20.86" | 2.09" | 27.11" | 1.13" | 2.5" | 24500 lbs. | €3,652.11 | |
| RD41 | 1.88" | 4 ton. | 10.12" | 1.61" | 11.25" | 0.44" | 1" | 3900 lbs. | €1,058.31 | |
| RD43 | 1.88" | 4 ton. | 12.12" | 1.61" | 15.25" | 0.44" | 1" | 3900 lbs. | €2,019.60 | |
| RD46 | 1.88" | 4 ton. | 15.12" | 1.61" | 21.25" | 0.44" | 1" | 3900 lbs. | €1,302.84 | |
| RD91 | 2.27" | 9 ton. | 11.61" | 1.5" | 12.76" | 0.56" | 1.5" | 9000 lbs. | €1,562.22 |
