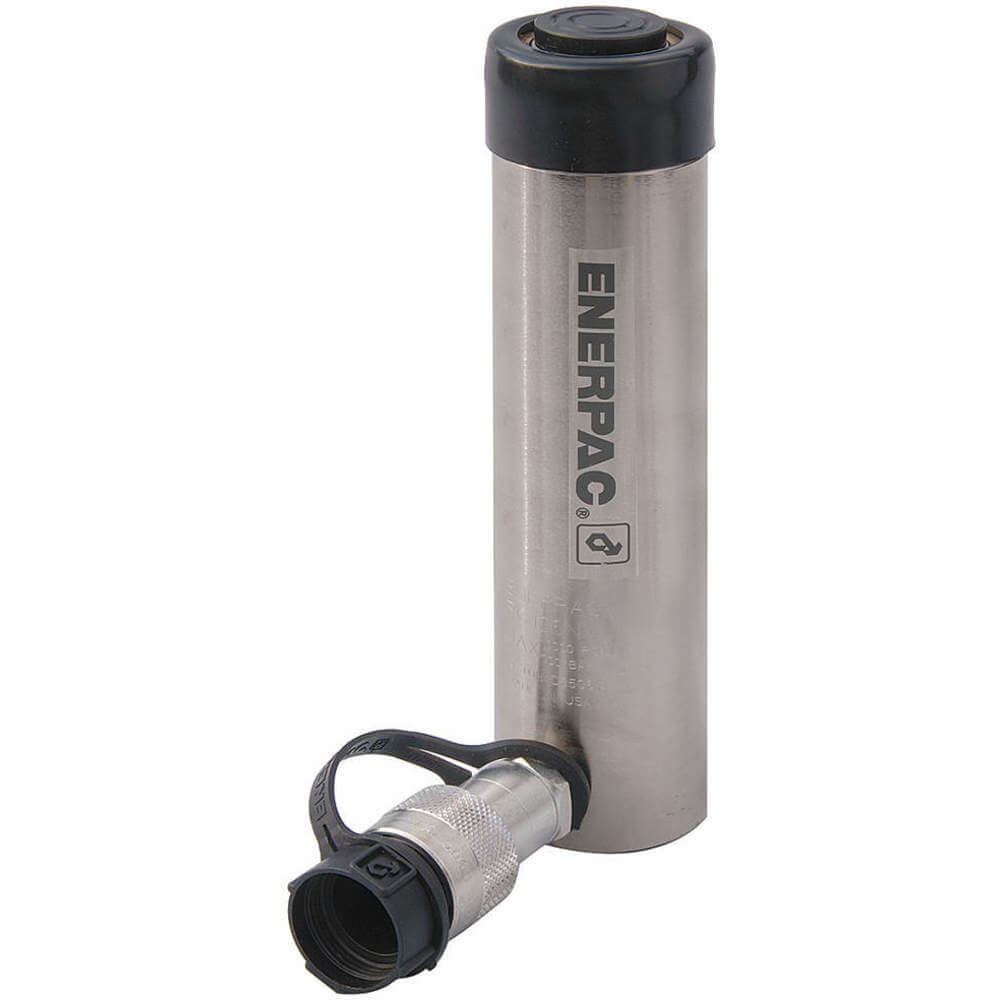

ENERPAC RC256NV General Purpose Hydraulic Cylinder, 25 Ton, 6 Inch Stroke Length
Get it by Tuesday, Jun 17
€2,859.57 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Body Finish | Nickel Plated |
| Body Material | Steel |
| Bolt Circle Dia. | 2.31" |
| Collapsed Height | 10 3/4" |
| Cylinder Type | General Purpose |
| Extended Height | 17" |
| Finish | Nickel Plated |
| Handle | No |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 32.13 cu. in. |
| Outside Dia. | 3.38" |
| Plunger Type | Solid |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 6" |
| Thread Size | 1 1/2"-13 |
| Weighing Capacity | 25 ton. |
| Base Bolt Circle Dia. | 2.31" |
| Center Hole Diameter | 2 1/4" |
| Collar Thread Size | 3 5/16"-12 |
| Effective Push Area | 5.16 sq. in. |
| Includes | Coupler, Dust Cap |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 25 ton. |
| Nominal Capacity | 25 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity Push | 32.23 cu. in. |
| Plunger Dia. | 2 1/4" |
| Plunger Thread Size | 1 1/2"-16 |
| Retracted Height | 10.75" |
| Ship weight (kg) | 11.39 |
| Ship height (cm) | 31.39 |
| Ship length (cm) | 15.29 |
| Ship width (cm) | 9.88 |
| HS code | 8425420000 |
| Country of Origin | CN |
| Model | Capacity | Cylinder Effective Area Advance | Max. Cylinder Capacity Advance | Oil Capacity Advance | Outside Dia. | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|
| RC106NV | 10 ton. | 2.24 sq. in. | 11.2 short ton. | 13.7 cu. in. | 2.25" | 6" | €1,764.64 | |
| RC102NV | 10 ton. | 2.24 sq. in. | 11.2 short ton. | 4.75 cu. in. | 2.25" | 2" | - | RFQ
|
| RC53NV | 5 ton. | 0.99 sq. in. | 4.9 short ton. | 2.98 cu. in. | 1.5" | 3" | €1,339.14 |
