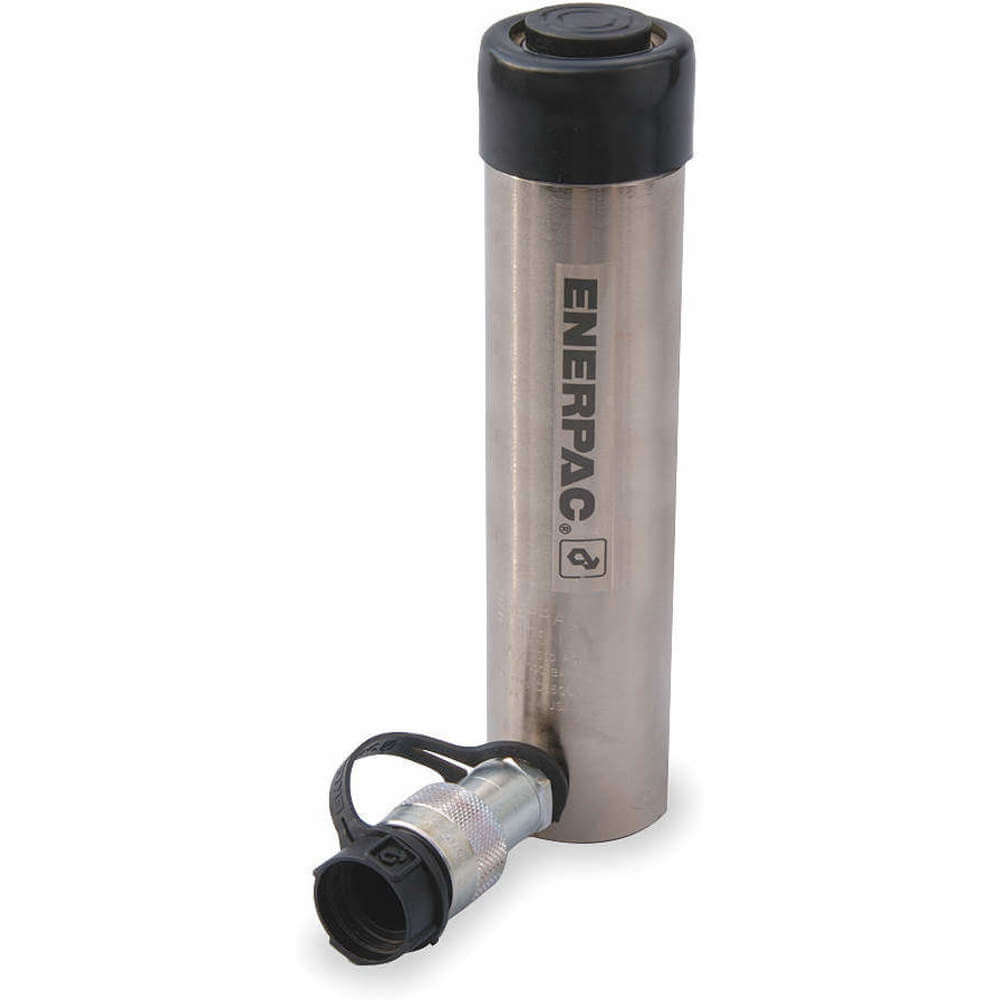

| Item | Hydraulic Cylinder |
| Body Finish | Nickel Plated |
| Body Material | Steel |
| Bolt Circle Dia. | 1 14/25" |
| Collapsed Height | 9 3/4" |
| Cylinder Type | Extreme Environment , General Purpose |
| Extended Height | 15 22/25" |
| Finish | Nickel Plated |
| Handle | No |
| Includes | Viton Seals |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity | 13.7 cu. in. |
| Outside Dia. | 2 1/4" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 6" |
| Thread Size | 5/16"-18 |
| Weighing Capacity | 10 ton. |
| Base Bolt Circle Dia. | 1.56" |
| Center Hole Diameter | 1 1/2" |
| Collar Thread Size | 2 1/4"-14 |
| Effective Push Area | 2.25 sq. in. |
| Max. Pressure | 10000 psi |
| Max. Push Capacity | 10 ton. |
| Nominal Capacity | 10 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity Push | 13.7 cu. in. |
| Plunger Dia. | 1 1/2" |
| Plunger Thread Size | 1"-8 |
| Retracted Height | 9.75" |
| Ship weight (kg) | 4.48 |
| Ship height (cm) | 28.47 |
| Ship length (cm) | 32 |
| Ship width (cm) | 6.58 |
| HS code | 8425420000 |
| Country of Origin | CN |
| Product | Model | Capacity | Cylinder Effective Area Advance | Max. Cylinder Capacity Advance | Oil Capacity Advance | Outside Dia. | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|
|
RC102NV | 10 ton. | 2.24 sq. in. | 11.2 short ton. | 4.75 cu. in. | 2.25" | 2" | - | RFQ
|
 |
RC53NV | 5 ton. | 0.99 sq. in. | 4.9 short ton. | 2.98 cu. in. | 1.5" | 3" | €1,339.14 | |
 |
RC256NV | 25 ton. | 5.16 sq. in. | 25.8 short ton. | 32.23 cu. in. | 3.38" | 6" | €2,859.57 |
