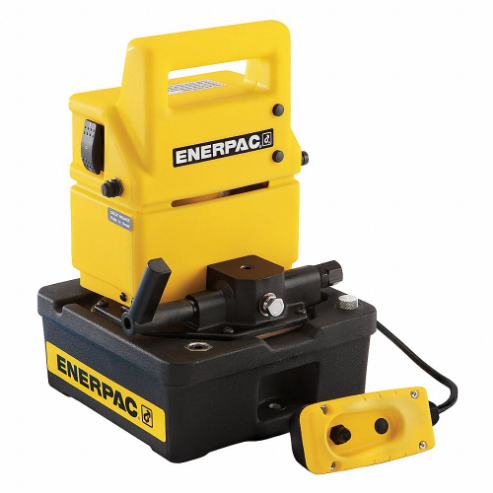

ENERPAC PUJ1400B Electric Hydraulic Pump, 4/3 Manual Valve, 115V, Double-Acting Cylinders
Get it by Monday, Jun 16
€4,554.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Electric Pump |
| Amps Ac | 9.5A |
| Control Valve Function | Advance, Hold, Retract |
| Current Drawn | 9.5A |
| Cylinder Compatibility | Double Acting |
| Dimension A | 9.62" |
| Dimension B | 9.62" |
| Dimension C | 14 1/4" |
| Dimension D | 4" |
| Dimension E | 4 18/25" |
| Dimension F | 8" |
| Dimension H | 2/5" |
| Dimension J | 5 1/4" |
| Duty Cycle | Intermittent |
| Fluid Port Npt | 3/8" |
| Hp | 1/2 hp |
| Max. Operating Pressure | 10000 psi |
| Motor Type | Universal |
| Oil Displacement @ 1000 Psi | 30 cu. in./min. |
| Oil Displacement @ 5000 Psi | 25 cu. in./min. |
| Overall Height | 14.3" |
| Power Source | Electric |
| Pressure Rating 1st Stage | 200 psi |
| Pressure Rating 2nd Stage | 10000 psi |
| Pump Control | Pendant |
| Relief Valve Range | 1000 psi to 2000 psi |
| Reservoir Material | Polyethylene |
| Sound Level | 85 dBA |
| Type | Electric |
| Valve Operation | Manual |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | Manual |
| Control Valve Pressure Relief (minimum) | 1000 psi |
| Control Valve Type | 3-Position, 4-Way |
| Current | 9.5A |
| Displacement @ 10,000 Psi | 20 cu. in./min. |
| Displacement @ 100 Psi | 200 cu. in./min. |
| Displacement @ 1000 Psi | 30 cu. in./min. |
| Displacement @ 200 Psi | 200 cu. in./min. |
| Displacement @ 5000 Psi | 25 cu. in./min. |
| Displacement @ 700 Psi | 70 cu. in./min. |
| Frequency | 50/60 Hz |
| Max. Control Valve Pressure Relief | 2000 psi |
| Max. Flow Rate | 20 cu. in./min. |
| Max. Horsepower | 1/2 hp |
| Max. Sound Level | 85 dBA |
| Media Intake Connection Size | 1/4" |
| Media Intake Connection Type | NPTF |
| Nameplate Voltage | 115V AC |
| Overall Length | 9.6" |
| Overall Width | 9 3/5" |
| Remote Control Cord Length | 10 ft. |
| Reservoir Capacity | 0.5 gal. |
| Ship weight (kg) | 15.62 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 24.43 |
| Ship width (cm) | 24.43 |
| HS code | 8413500050 |
| Country of Origin | US |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension J | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PUJ1200B | Single Acting | 9.62" | 9.62" | 14.25" | 4" | 4.72" | 8" | 5.25" | €3,941.19 | |
 |
PUJ1201B | Single Acting | 14.5" | 12.18" | 14.72" | 4.15" | 5.12" | 12.74" | 5.62" | €4,081.77 | |
 |
PUJ1401B | Double Acting | 14.5" | 12.18" | 14.72" | 4.15" | 5.12" | 12.74" | 5.62" | €4,698.54 |
